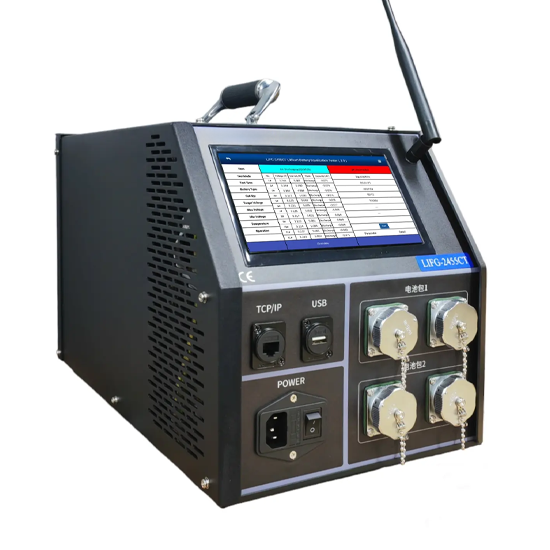

LIFG-CT Series Lithium Battery Equalization Tester for Voltage Balancing

Product Name Lithium Battery Equalization Tetser
Function Cell Balancing
Test Cell Qty 24
Test Mode Independent Channel Balancing
Power 600W max
Voltage Range 0-5V
Current Range 0-5A
Display 7-inch LCD Touchscreen

EMAIL

Overview

The LIFG-CT Series Lithium Battery Equalization Tester is designed to address cell voltage imbalance quickly, preventing issues such as overcharge and over-discharge caused by voltage discrepancies. This advanced equalization tester eliminates capacity deviation due to self-discharge and inconsistent Coulomb efficiency, ensuring high precision and fast maintenance. Offering safety, reliability, and versatility, the tester is compatible with various battery chemistries, including Li(NiCoMn)O2, LiFePO4, and LiTiO. It enhances battery pack consistency and significantly extends service life. Additionally, it allows users to simulate harsh working conditions by creating voltage differences between cells, making it ideal for research and development experiments.

Application

Battery manufacturers use the LIFG-CT Series Lithium Battery Equalization Tester for after-sales service, warehousing, TVC testing,

and quality assurance. It ensures efficient battery pack equalization and improves overall battery performance.

EV OEMs rely on this device for effective battery maintenance,

helping to maintain battery pack consistency and extend their lifespan.

Service providers utilize the LIFG-CT tester for aftermarket maintenance, optimizing the performance of battery packs by equalizing

voltage levels and preventing issues like overcharge and over-discharge.

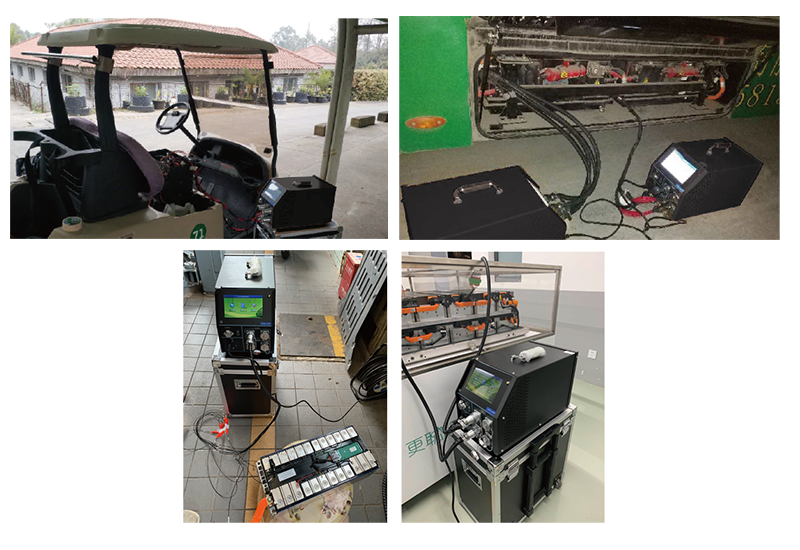

Test Site

LIFG-CT Series Lithium Battery Equalization.png

Functional Characteristics

Discharge-Charge Balance: The independent channel design ensures precise detection and equalized charging or discharging of cells, preventing overcharging and over-discharging to maintain battery health and performance.

Wide Applications: With a 5V voltage range, this lithium battery equalization tester is ideal for balancing Li-ion battery modules and packs of varying voltage levels commonly used in the market, making it versatile for different applications.

Calibration Correction: The tester allows for calibration and correction of voltage and current measurements, ensuring the accuracy of results and reliable performance across all testing operations.

Presetting Function: Simplify operations with the preset function for equalization test parameters, improving efficiency and reducing testing time, ideal for batch testing or routine maintenance.

Voltage Clamped: With constant voltage regulation, the tester reduces current fluctuations, keeping cell voltage close to the target value for precise testing and optimal results.

Multiple Protections: The system supports various test thresholds and offers comprehensive protection against abnormal conditions. It triggers automatic test termination and provides visual and audible alerts for user safety and correct test handling.

7-Inch LCD Touch Screen: The large, user-friendly LCD touch screen displays real-time data and graphs, offering an intuitive interface that simplifies test management and ensures easy operation for both novice and experienced users.

By integrating these features, this tester provides precise, efficient, and reliable performance for lithium battery equalization, making it a key tool for manufacturers, service providers, and maintenance teams looking to enhance battery pack longevity and consistency.

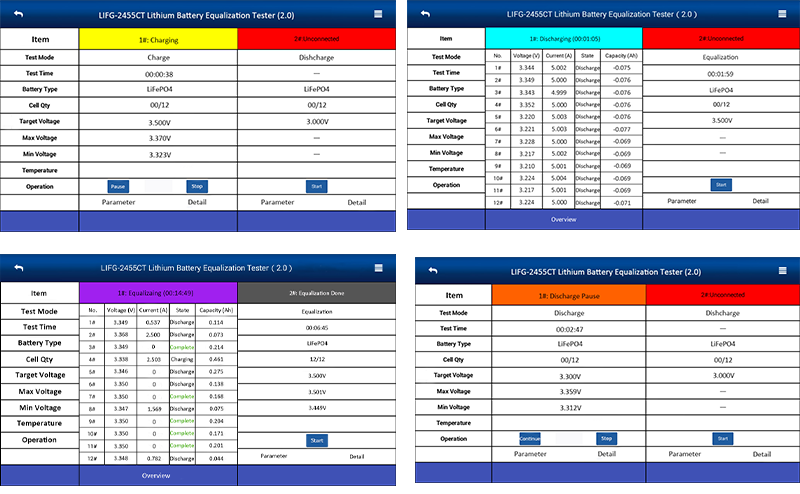

Operating Display

LIFG-CT Series Lithium Battery.png

 Technical Parameter

The LIFG series, including models like LIFG-1255CT, LIFG-2455CT, LIFG-3655CT, LIFG-4855CT, LIFG-1210NT, and LIFG-2410NT, provides versatile testing solutions with different specifications to meet the unique needs of various lithium battery applications. Precision testing made easy with BattFix!

Model

LIFG-1255CT

LIFG-2455CT

LIFG-3655CT

LIFG-4855CT

LIFG-1210NT

LIFG-2410NT

Test Cell Qty

1*12

2*12

3*12

4*12

1*12

2*12

Power

max 300W

max 600W

max 900W

max 1200W

max 600W

max 1200W

Voltage Range

5V @±0.1%FS±2mV

Current Range

0.1-5A   @±1%FS±0.05A

0.05-10A   @±1%FS±0.05A

Temp Range

-2585@±2

Battery Port

16pin/24pin

16pin/24pin

26pin/17pin

24pin

26pin/26pin

26pin/24pin

26pin/24pin

Display

7 -inch touch   screen

PC Data   Comm

TCP/IP, USB

Wireless   Comm

WIFI, BT (WIFI   antenna external)

Charge Mode

constant current   charging + constant voltage charging

Discharge Mode

constant current   discharge (constant power discharge and constant resistance discharge are   optional)

Dimension (mm)

455*255*220

496*246*262

480*255*430

480*255*590

496*246*262

480*255*590

Weight (kg)

8.5

14

18

29

10.5

23
