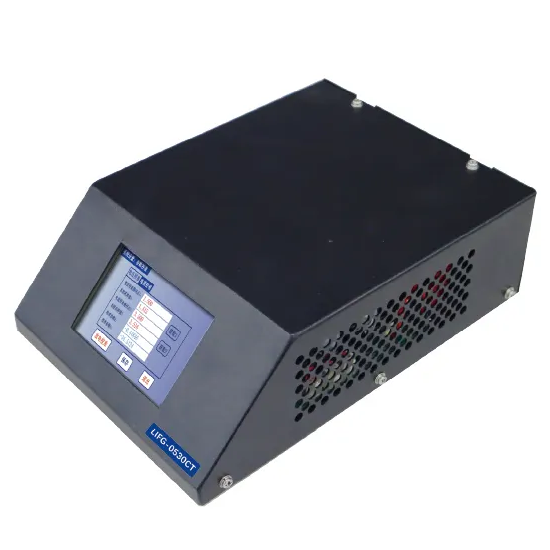

Portable LIFG-0530CT Cell Discharge Charge Unit

Warranty 1 Years
CAR MODEL Electric Vehicles
Application EV OEMs Warehousing & Aftermarket
Function Battery Cell Discharge Charge
Battery Type Lithium-ion Battery
Current Range 1.0-30A
Voltage Range 1-5V
Display 3.5-inch LCD touchscreen

EMAIL

Overview

The LIFG-0530CT is designed to efficiently maintain lithium battery cells with significant voltage drops, ensuring optimal performance and longevity. With real-time monitoring of cell voltage and current, it accurately calculates accumulated charge and discharge power. This versatile unit supports maintenance and testing for a wide range of lithium batteries, including Li-ion, LiFePO4, and Li(NiCoMn)O2, making it ideal for ensuring consistency and performance in battery modules.

Application

Battery Manufacturers & OEMs: Streamline warehousing and after-sales with single-channel, high-current, fast equalization for battery modules.

Functional Characteristics

Wide Application: Designed for maintenance testing of various lithium batteries, including lithium iron phosphate, ternary lithium, and lithium titanate series, ensuring versatility across battery types.

High-Efficiency Maintenance: Features a constant current charge and discharge mode with a maximum current of 30A, enabling fast and efficient battery equalization. Its portable design further enhances maintenance convenience and productivity.

Compact and Portable: Lightweight and small-sized, this tester is easy to carry, making it ideal for on-site maintenance tasks.

User-Friendly Presetting: The preset function allows equalization test parameters to be set in advance, simplifying operations and improving overall test efficiency.

Intuitive 3.5-Inch LCD Touch Screen: Displays real-time data with a user-friendly interface, streamlined input methods, and intuitive menu navigation for hassle-free operation.

Adjustable Testing: Supports manual pause during tests for parameter adjustments without interrupting the process, ensuring seamless testing continuity.

Comprehensive Multi-Protection: Equipped with multiple test shutdown thresholds to prevent overcharging or over-discharging of cells, ensuring battery safety and reliability during maintenance.

This optimized design provides a powerful and portable solution for lithium battery maintenance, delivering accuracy, efficiency, and enhanced safety features.

Technical Parameter


Model

LIFG-0530CT

Working Voltage

AC100-264V @50Hz

Voltage Range

1.0-4.5V

Voltage Accuracy

±0.2%FS+5mV@5V

Discharge Current

1.0-30A ±0.5%FS+0.1A@30A

Charging Voltage

1.0-4.5V

Charging Current

1.0-30A ±0.5%FS+0.1A@30A

Display

3.5 inch LCD touch screen

Communication

RS485

Protection

DC input over voltage, polarity reversal, discharge over current, over temperature

Dimension (mm)

230*155*75

Weight (kg)

2
