Charge Power Max 1200W
Voltage Range & Accuracy 5V@±0.1%FS±2mV
Current Range & Accuracy 5A@±1%FS±0.05A
Temp Range & Accuracy -25~85℃@±2℃
Battery Port 13Pin/ 13Pin*4
Display 7 inches of capacitive touch screen

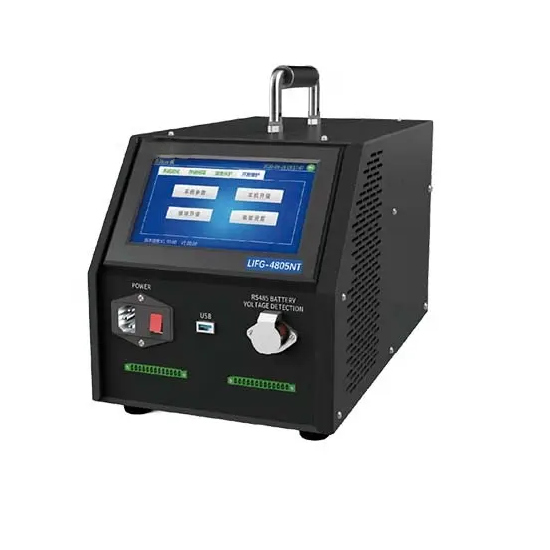

Overview
The LIFG-NT series integrates advanced charging and maintenance technology to efficiently detect and equalize lithium battery module cells. Ideal for routine charging maintenance of lithium battery packs, its versatile voltage range supports compatibility with various lithium battery types and voltage levels. This innovative solution ensures precise and reliable performance, enhancing battery health and longevity while streamlining maintenance processes.
Application
Battery Manufacturers: After-sales service, warehousing, TVC testing, QA, and other essential battery performance testing.
EV OEMs: Efficient and reliable battery maintenance solutions.
Service Providers: Comprehensive aftermarket maintenance for battery packs and modules.
Functional Characteristics
Charging Equalization: Supports detection and equalized charging of cells in the battery pack, preventing overcharging
and ensuring balanced performance.
Calibration Correction: Voltage and current values can be calibrated and adjusted in real time for accurate
measurements throughout the testing process.
Voltage Clamping: Constant voltage control and current reduction ensures that the cell voltage remains close to
the target threshold, optimizing battery health during the test.
Multiple Protection: Monitors voltage and cell temperature, with customizable test stop thresholds to protect cells from overcharging,
overheating, and other abnormal conditions.
7-inch LCD Display: The large touch screen provides clear real-time data and graphs, with an intuitive interface
that simplifies operation and enhances user experience.
Technical Parameter
Our product lines, such as the LIFG series, offer different models like LIFG-1205NT, LIFG-2405NT, LIFG-3605NT, and LIFG-4805NT, each designed to meet specific testing and maintenance needs. Precision Testing Made Easy! Choose BattFix to make your testing simpler.
Model | LIFG-1205NT | LIFG-2405NT | LIFG-3605NT | LIFG-4805NT |
Test Port | 1*12 | 2*12 | 3*12 | 4*12 |
Charge Power | Max 300W | Max 600W | Max 900W | Max 1200W |
Voltage Range & Accuracy | 5V@±0.1%FS±2mV | |||
Current Range & Accuracy | 5A@±1%FS±0.05A | |||
Temp Range & Accuracy | -25~85°C@±2°C | |||
Battery Port | 13Pin/ 23Pin | 13Pin*2 | 13Pin*3 | 13Pin*4 |
Display | 7-inch LCD touch screen | |||
PC Data Communication | TCP/IP ,USB-Device | |||
Charge Mode | Constant Current & Constant Voltage | |||
Dimension (mm) | 410*225*220 | 410*225*270 | 520*300*330 | 520*300*330 |
Weight (kg) | 8 | 10.5 | 20.5 | 23 |
