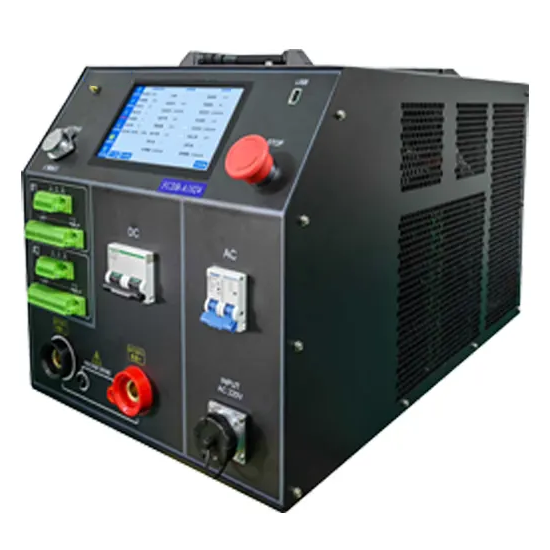

FCDB-A1024 Lithium Battery Tester for EV Maintenance and Equalization

Model Number FCDB-A1024
Application Li-ion Battery Test Equipment
Group Voltage Range 2-260V
Group Current Range 0-80A
Testing Channel Qty 2*12
Equalizing Current 5A
Display 7-inch color touchscreen

EMAIL

Overview

FCDB-A1024 Lithium Battery Maintenance Tester integrates both battery string discharge-charge and cell equalization functions into a single unit, significantly enhancing the efficiency of lithium battery testing and aftermarket maintenance. Designed for versatile applications, it is ideal for EV battery maintenance, lithium battery repair, and ensuring optimal performance in various industries. This all-in-one tester supports efficient diagnosis, equalization, and maintenance of lithium-ion batteries, making it a must-have tool for service providers, EV manufacturers, and battery maintenance professionals.

Application

Service Providers: Aftermarket maintenance for battery string charging, discharging, and cell equalization.

EV & Battery Manufacturers: Battery testing and maintenance solutions for improved performance and longevity.

Functional Characteristics

Wide Applications: Adopts intelligent charge and discharge testing technology that ensures no interference with BMS, ideal for lithium battery string discharge-charge and cell equalization tests across various battery types.

Customizable Step Test: Users can define and modify test steps and parameters based on specific requirements, with the tester automatically completing the test process.

Wide Voltage Range: Suitable for testing and maintaining lithium battery strings with voltage levels from 2V to 260V, offering versatile application for different battery types.

Real-Time Cell Voltage Monitoring: The device collects real-time cell voltage through CAN communication or physical sampling, ensuring accurate capacity measurements and protecting batteries from over-discharge or over-charging.

Smart Equalization Mode: Features an intelligent equalization function that automatically detects cell voltage imbalances and performs discharge-charge and equalization for improved battery performance.

Efficient High-Power Charging: Includes a high-efficiency charging mode that helps with cell depolarization, optimizing the equalization process for better battery health.

Multiple Protection Features: Provides multiple safety protections, including overvoltage, undervoltage, overcurrent, short-circuit, reversed polarity, and over-temperature to prevent damage during testing.

Intelligent Data Ports: Equipped with various communication ports, such as RS485 and CAN, to effectively monitor and protect battery performance during testing and maintenance.

Large Touch LCD Display: The 7-inch LCD touchscreen displays all real-time data in various formats such as tables, bar charts, and curve graphs, with intuitive touch controls for easy operation.

Technical Parameter

ModelFCDB-A1024
Test Cell Qty
2*12
Group Voltage Range
2-260V
Voltage Accuracy±0.2%FS+0.1V
Group Current Range1~100A (max)
Current Accuracy  ±0.5%FS+0.1A
Test Power

charge: 4.4kW max

discharge: 7.2kW max

Equalization Voltage1.8~5.0V
Equalization Current0~5A
Temp Accuracy±2°C (-25°C~85°C)
Charge Modeconstant current + constant voltage
Discharge Modeconstant current + constant voltage
Protectionovercurrent and overvoltage protection for input and output
Communication

CAN/RS485: cell data acquisition

USB: data export & system upgrade

AC Power Supplysingle-phase 3-wire 90-264Vac, frequency: 45~65Hz
Display7-inch TFT LCD screen, 800*480
Dimension630*360*370mm
Weight37.5kg
