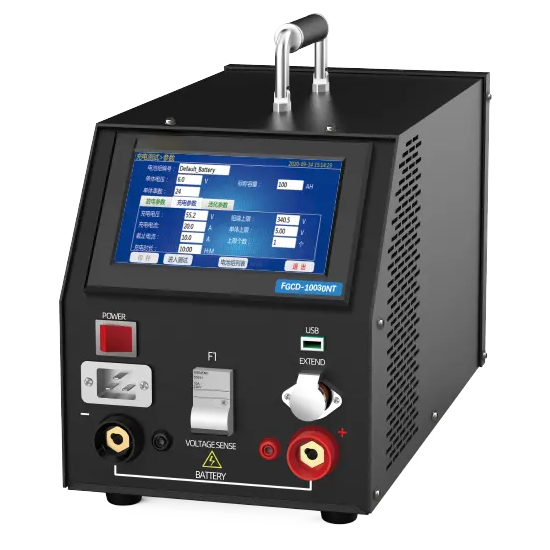

FGCD-10030NT Lithium-ion Battery Discharge Charge Tester 100V 30A Real-time Voltage Monitoring

Model Number FGCD-10030NT
Application Battery Discharge Charge
Working Mode Discharge, Charge, Cycle
Voltage Range 2-100V
Battery Type Lithium-ion Battery
Discharge Current 0-30A
Charge Current 0-30A
Power Supply 110/220Vac
Display 7-inch LCD Touchscreen

EMAIL

Overview

The FGCD series tester utilizes advanced charging and discharging technology, offering a range of built-in test and maintenance modes. It is ideal for discharging, charging, and cycle charge-discharge tests across various lithium battery pack types, ensuring efficient and reliable performance.

Application

It is primarily designed for charging and discharging tests of low voltage batteries. The tester supports real-time cell voltage monitoring, preventing overcharge and over-discharge to ensure battery safety and performance.

Functional Characteristics

Multi-functional Testing Solution: The versatile design supports a wide voltage range, making it ideal for discharge, charge, and activation tests on battery packs of various voltage levels.

Accurate Discharge Modes: Utilizes efficient aerospace-grade load materials and advanced control technology to ensure precise discharge performance.

High-Efficiency Charging: Optimized charging mode ensures complete battery pack charging, significantly improving overall charging efficiency.

Battery Pack Activation: Customize charge and discharge parameters, including activation time, to enhance battery capacity and performance.

Communication Support: Supports CAN and RS485 communication protocols for seamless data exchange and integration.

Comprehensive Data Acquisition: Real-time monitoring of max/min voltage, temperature, and other essential data, displayed in easy-to-read bar charts, tables, and curves.

Built-in Protection Features: Includes multiple protective measures such as alarms for reversed polarity, over-temperature, short-circuit, overcurrent, fan failure, and more to ensure safe testing conditions.

Technical Parameter

ModelFGCD-10030NT
Voltage RangeDC 2-100V
Voltage Accuracy0.5%FS; group resolution: 0.1V, cell resolution: 0.001V
Discharge Current0-30A, 2kW max
Charge Current0-30A, 2kW max
Current Accuracy
1%FS
Power Supply

110/220Vac

Working Mode

Discharge(constant current+constant power);

Charge(constant current+constant voltage);

Cycle test

Cell Acquisition

BMS communication(RS485, CAN); phsical sampling clips

Protection
over voltage, under voltage, over current, polarity reversal, over temp, overcharge, overdischarge
Dimension(mm)

452*234*28

Weight(kg)18
