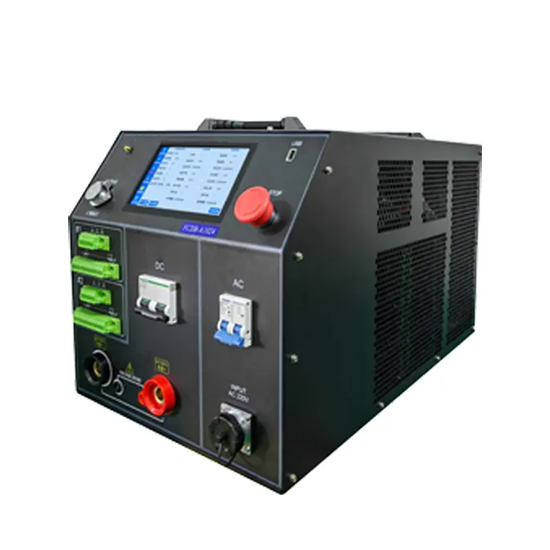

FCDB-A1024 Advanced Lithium Battery Maintenance and Diagnostic Tester

Application Li-ion Battery Test Equipment
Group Voltage Range 2-260V
Group Current Range 0-80A
Testing Channel Qty 2*12

Overview

The FCDB-A1024 Lithium Battery Maintenance Tester combines discharge, charge, and cell equalization functions into a single unit, significantly enhancing efficiency for lithium battery testing and aftermarket maintenance.

APPLICATION

Comprehensive Functions: Supports balanced charge and discharge for individual cells, battery modules, and packs, along with synchronized combined testing for maximum versatility.
Customizable Parameters: Allows presetting of charging, discharging, and equalization parameters, with automated process completion for efficient operation.
Advanced Communication Support: Features RS485 and CAN communication protocols for effective real-time monitoring and protection of battery performance.
Enhanced Equalization: Includes cell depolarization capabilities to improve equalization effectiveness.
Optional Barcode Scanning: Supports an optional barcode scanner to easily scan and record the part number (PN) of the tested battery.
Large Touchscreen LCD Display: Equipped with a user-friendly, large LCD touchscreen that shows real-time data and graphs. Simplified menu navigation and intuitive input methods streamline operations for better usability.

SPECIFICATIONS

Model	FDCB-A1024
AC Power Supply	Single-phase 3-wire AC100-264V @50Hz
Group Voltage Range	2-260V
Voltage Accuracy	+0.2%FS+0.1V
Voltage Resolution	0.001V@0-30V, 0.01@30.01-260.00V
Group Current Range	0-80A, 4kW (Charge), 7kW (Discharge)
Current Resolution	0.1A
Current Accuracy	+0.5%FS+0.1A
Test Cell Qty	2*12
Equalizing Current	5A
Temperature Sampling	6-channel, only NTC acceptable (equalizing and sampling via different wire)
Display	7-inch color touch screen
Memory	auto-save test data to avoid data loss in case of power off
Communication Port	WIFI/CAN/RS485/USB
