Product name LIFG-4-100A
Application EV OEMs, Forklift, Battery Manufacturer
Working Mode 4-Channel Independent Working
Battery Type Lithium-ion Battery
Function Battery Discharge, Charge, Cycle Test
Discharge Voltage 1-5V
Overview

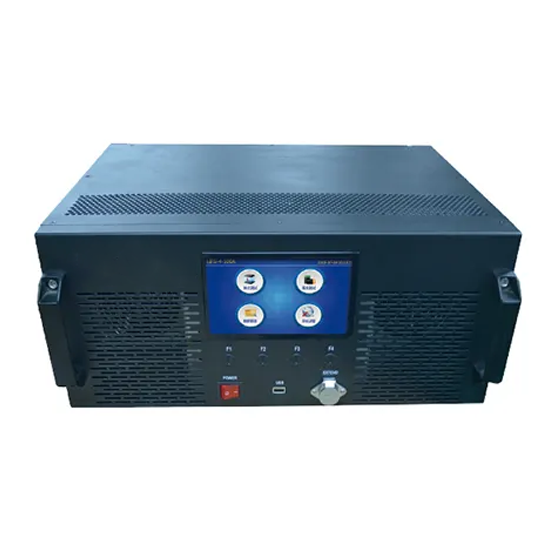

LIFG-4-X integrates discharge, charge, and activation functions into one powerful unit, offering multi-channel testing with independent cell control and high-current capabilities. It is designed to handle a variety of battery testing and maintenance tasks, simulating real-world loading conditions to provide a comprehensive evaluation of battery pack performance. Ideal for lithium-ion battery packs, this versatile tester ensures accurate diagnostics and extended battery life with features such as customizable test modes, independent channel control, and efficient high-current cycling. Perfect for use in EV, energy storage, and battery manufacturing industries, LIFG-4-X offers a comprehensive solution for battery performance validation and maintenance.
Application
Ideal for after-sales service, the LIFG-4-X is specially designed for large-capacity lithium battery capacity testing. It is particularly well-suited for the rapid maintenance and performance testing of forklift lithium batteries, ensuring efficient and accurate diagnostics for extended battery life.
Functional Characteristics
The LIFG-4-X offers 4-channel independent charging and discharging with high accuracy and adjustable charge/discharge current, making it ideal for large-capacity battery testing. The device supports combined test modes with a maximum current of up to 400A, allowing for comprehensive battery performance evaluation.
With advanced data storage capabilities, it automatically generates detailed data reports, enhancing after-sales service efficiency. The unit integrates discharge, charge, and activation functions into one device, solving various battery testing and maintenance tasks.
During testing, the device allows users to set multiple shutdown thresholds to prevent overcharging and overdischarging, ensuring both battery safety and device protection.
7-inch LCD display: The large, intuitive touchscreen provides real-time data and graphs, including charge/discharge curves and battery health metrics, and auto-generates data reports. The user-friendly interface simplifies operation.
Smart Communication Ports: Equipped with RS485, RJ45, CAN, and other ports, the unit supports seamless communication with lithium battery BMS systems, upper computers, and other intelligent devices for integrated battery management.
Technical Parameter
BattFix offers a wide range of models within each product series, such as the LIFG-4 series with models like LIFG-4-100A and LIFG-4-30A. Each model is designed to meet specific testing requirements, providing precision and flexibility for various battery testing needs. Precision Testing Made Easy! Choose BattFix for a simpler and more efficient testing experience.
Model | LIFG-4-100A | LIFG-4-30A |
Application | Lithium Battery Industry, Battey Manufacturer, OEMs | |
Discharge Voltage | 4 channel, independent, 1-5V | 4 channel, independent, 2.8-4.2V |
Discharge Current | 4 channel, independent, 1-100A | 4 channel, independent, 1-30A |
Charging Current | 4 channel, independent, 1-100A | 4 channel, independent, 1-30A |
Power Supply | AC220V | |
Working Mode | discharge, charging, discharge-charge cycle (activation) | |
Cell Voltage Accuracy | accuracy: ±0.2%FS+5mV, resolution: 0.001V | accuracy: ±0.1%FS+10mV, resolution: 0.001V |
Current Accuracy | accuracy±0.5%FS+0.2A, resolution:0.1A | accuracy±1%FS+0.1A, resolution:0.01A |
Dimension (mm) | 512*296*340 | 461*246*264 |
Weight (kg) | 25 | 14 |
