Test Power 35W max
Test Method direct pressre mode
Test Pressure Range
low pressure: 0-30kPa
high pressure: 100-500kPa
Sensor Resolution 1Pa
Testing Accuracy
±1pa
Display 7-inch LCD touchscreen
Overview

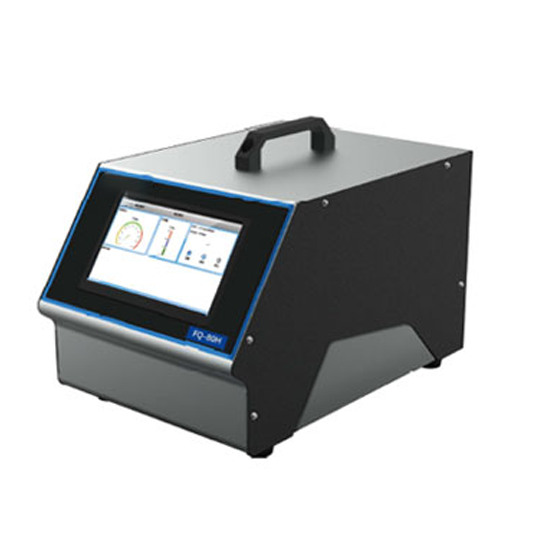

The FQ-80H High-Accuracy Battery Leakage Tester is an advanced nondestructive testing equipment developed by FUGUANG, providing superior sensitivity and stability for battery leakage detection in the new energy sector. Airtightness testing of lithium-ion and lead-acid battery packs is critical to ensure the safety, reliability, and longevity of energy storage systems and electric vehicle (EV) batteries.
The FQ-80H utilizes compressed air to apply precise pressure to the battery’s inner cavity or surface, while advanced pressure sensors detect any variation, identifying potential leaks. This method effectively tests battery packs for leaks in industries such as electric vehicles, energy storage, and industrial applications.
One of the key advantages of the FQ-80H is its ability to quickly detect leaks without damaging the battery, providing fast, cost-effective, and environmentally friendly battery testing. It improves test efficiency and ensures high-quality, safe battery performance, making it an ideal solution for manufacturers, energy companies, and service providers in the new energy and electric vehicle industries.
Application
The FQ-80H Battery Leakage Tester is designed for low-pressure air-tightness testing of battery packs and high-pressure liquid cooling systems. Essential for EV OEMs and battery manufacturers, it ensures battery safety, reliability, and performance, making it a key tool for quality control and maintenance in the electric vehicle industry.
Functional Characteristics
High Sensitivity for Accurate Testing: The FQ-80H features advanced pressure sensing technology, ensuring precise detection of battery pack leaks with enhanced accuracy and stability.
Barcode Scanning Support: Easily scan and identify battery packs with the integrated barcode scanner, streamlining testing and tracking.
Visualized Testing Process: Real-time display of test progress with detailed time tracking for each testing stage, improving workflow transparency.
Dual Pressure Display: Simultaneously shows both the pressure dial and the test curve on the screen, providing clear and comprehensive insights.
Efficient Parameter Management: Remembers previous test parameters for faster setup and more efficient testing in subsequent cycles.
Intelligent Alarm System: Audible and visual alerts ensure immediate awareness of any test failures or abnormalities, prioritizing safety.
Remote Data Management: Supports online system upgrades and cloud-based data transmission for remote monitoring and management, enhancing overall efficiency and convenience.
These features make the FQ-80H an essential tool for EV OEMs, battery manufacturers, and energy storage companies, offering reliable and efficient battery pack testing and maintenance solutions.
Technical Parameter
Model | FQ-80H |
Applicable | motive battery pack and liquid cooling system(high/low pressure compatible) |
Test Power | 35W max |
Test Method | direct pressre mode |
Test Pressure Range | low pressure: 0-30kPa high pressure: 100-500kPa |
Sensor Resolution | 1Pa |
Testing Accuracy | ±1pa |
Display | 7-inch LCD touchscreen |
communication Port | RS485/USB |
Data Storage | internal memory auto-saving/USB disk |
Power Supply | 220Vac |
Air Supply | 0.1 - 1.0Mpa dry compressed air |
Air Inlet Port | φ6mm pipe |
Test Port | φ8mm pipe |
Work Condition | -10°- 55°C / 10% - 90% @25°C, without condensation |
Optional Components | air converter, air dry pipe, etc |
Dimension/Weight | 250*380*220mm/8kg |
