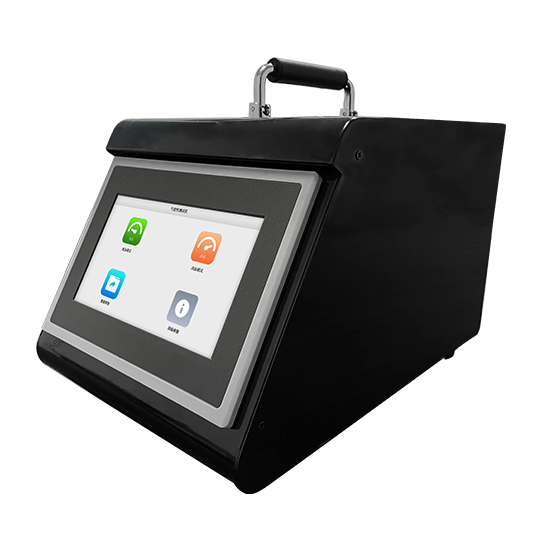

FQ-80L Low-Pressure Battery Leakage Tester

Model Number FQ-80L
Alpplication Battery Test
Working Mode Pressure
Display 7-inch touch LCD screen
Product name Battery Leakage Tester
Application battery pack air-tightness test

EMAIL

Overview

The FQ-80L Battery Leakage Tester is advanced, high-accuracy nondestructive testing equipment developed by FUGUANG. Using compressed air as the medium, it applies controlled pressure to the battery's inner cavity or surface. Sensitive sensors then detect any pressure changes, helping identify leaks in the battery pack.

Leakage or poor sealing in battery packs can cause significant performance degradation and compromise safety. The FQ-80L Battery Leakage Tester ensures accurate and reliable airtightness testing, preventing such issues. With its easy operation, intuitive results, and stable test data, this tool enhances the efficiency of battery manufacturers and energy storage providers, making it an essential asset for companies in the new energy industry.

Ideal for electric vehicle (EV) battery packs, lithium-ion battery testing, and energy storage systems, the FQ-80L is a key solution for improving battery performance and safety.

Application

Battery maintenance is crucial for battery manufacturers, OEMs, and service providers to ensure safety and performance. Tools like the FQ-80L Battery Leakage Tester improve testing accuracy and extend battery lifespan.

Functional Characteristics


High Sensitivity: Advanced pressure sensing enhances test accuracy and stability for precise leakage detection.

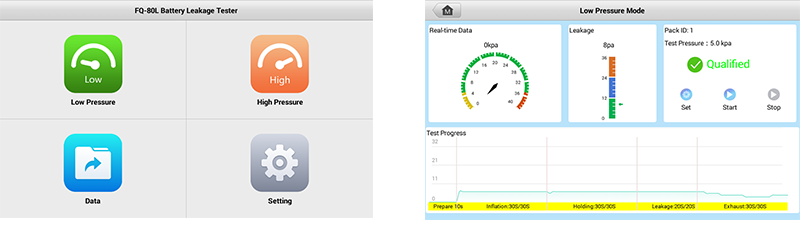

Large Screen Display: A 7-inch LCD touchscreen shows real-time test progress, data, and results for easy monitoring.

Barcode Scanner: Supports barcode scanning, automatically identifying and displaying the battery pack's ID for efficient tracking.

Visualized Process: Displays test stage progress and real-time results, offering a clear overview of the entire testing process.

Pressure Dual Display: Shows both the pressure dial and test curve on a single screen for simultaneous monitoring.

Parameters Management: Remembers the last test parameters, enabling quick adjustments and improving test efficiency.

Auto-Screenshot: Automatically saves screenshots of the test process for easier review and documentation.

Intelligent Alarm: Provides audible and visual alerts to notify users of abnormal conditions or test failures for enhanced safety.

Remote Management: Supports online system upgrades and remote data transmission via an optional cloud platform for seamless management.

Technical Parameter

Model

FQ-80L

Applicable

Suitable for the leakage test of EV battery packs

Test Power

20W max

Test Method

pressure

Test Pressure Range

0-30Kpa

Sensor Resolution

1Pa

Test Accuracy

±5Pa

Display

7-inch LCD touch screen

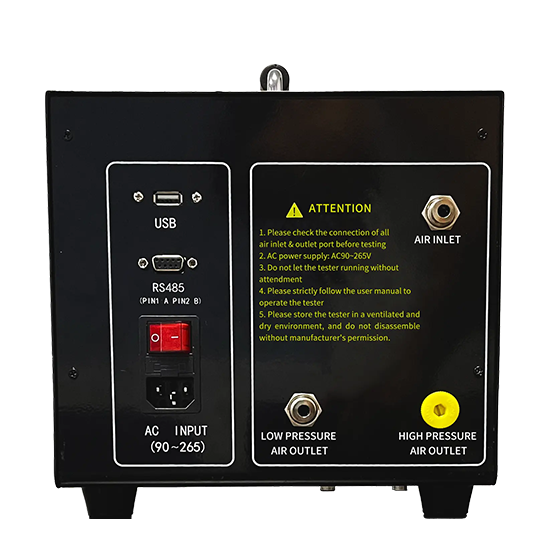

Communication Port

RS485, USB

Data Storage

Internal memory/download via USB disk

Power Supply

AC90~265V

Air Supply

0.1~1.0 Mpa dry compressed air

Air Inlet Port

φ6mm air pipe

Test Port

φ6mm air pipe

Work Temperature

-10°~55°C

Work Humidity

10%~90% @25°C, without   condensation

Dimension(mm)

280*300*200(W*L*H)

Weight

3.5kg

Optional

air converter
