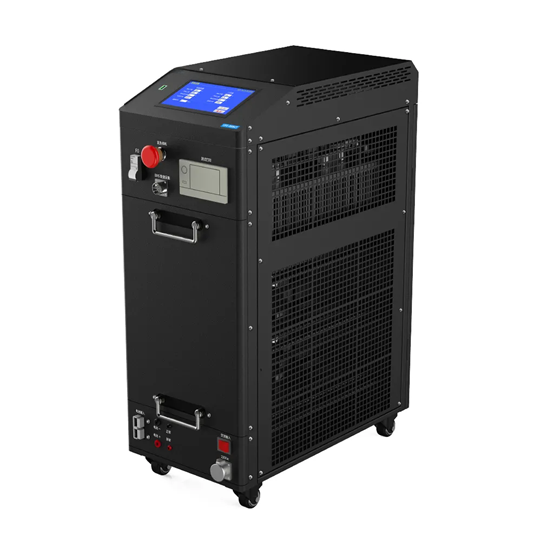

LIFG-8006CT Lithium Battery Discharge Tester – High Voltage, 800V Max

Product name LIFG-8006CT
Application EV OEMs/Battery Manufacturer
Battery Type Lithium Battery
Function Battery Discharge
Discharge Voltage 200-800V (max)
Discharge Current 0-60A (max)
Max Discharge Power 36kW

EMAIL

Overview

LIFG-8006CT is a high-performance discharge tester designed for rapid discharging of high-voltage lithium battery packs, with a maximum discharge voltage of 800V. Equipped with a CAN data bus, it enables real-time monitoring of battery cell data during the discharge process. This tester is perfect for battery manufacturers, OEMs, and service providers who need efficient discharge solutions for lithium battery storage, transportation, repair, and recycling. It ensures safe and quick battery pack maintenance while maintaining accuracy and operational efficiency.

Application

Battery Manufacturers & OEMs: Efficient discharge for storage, transportation, repair, and battery recycling

Functional Characteristics

High-Voltage Discharge: The LIFG-8006CT supports a maximum discharge voltage of 800V, making it suitable for high-voltage lithium battery packs, ideal for applications in battery testing, maintenance, and recycling.

Cell Data Collection: Equipped with a CAN data bus, this unit can monitor and collect critical cell data in real-time during the discharge process, ensuring accurate battery performance analysis.

Multiple Protections: The unit features comprehensive protection mechanisms including cell over-discharge, over-temperature, host over-temperature, overcurrent, current runaway, and reverse polarity, safeguarding both the battery and testing equipment.

Technical Parameter

BattFix offers a wide range of models within each product series, such as the LIFG series with models like LIFG-8006CT and LIFG-K30NT. Each model is designed to meet specific testing requirements, ensuring high precision and flexibility for your battery testing needs. Precision Testing Made Easy! Choose BattFix for a more efficient and streamlined testing experience.

Model

LIFG-8006CT

Discharge Voltage Range

200-800V

Accuracy & Resolution

0.1V;±0.5%FS, max 800V

Discharge Current Range

200-300V:0-30A, 300-400V:0-45A, 400-600V:0-60A

600-800V:limit power to 36kW, voltage rise current reduced to 45A-60A

Accuracy & Resolution

0.1A;±1%FS, max 60A

Max Discharge Power

36kw

Discharge Mode

constant current discharge, constant power discharge

Battery Port

7 pin

Display

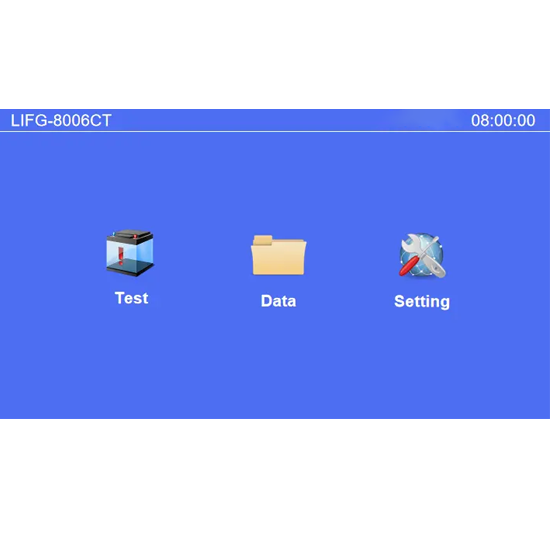

7 inch touch screen

PC Data Communication

TCP/IP, USB

Discharge Protection

battery strings over-discharge or over-temperature protection (BMS protocol required)

Host Protection

over-temperature, overcurrent, current runaway will trigger shutdown protection

Shutdown Actuator

high-voltage relay + high-voltage fuse

Polarity Reversal Protection

power supply shows zero, cannot start testing

Abnormal Protection

power cord / main cable power down protection

Over-temp Protection

resistance box over-temperature: 85°C, radiator over-temperature: 100°C

Dimension (mm)

293*506*773

Weight (kg)

45
