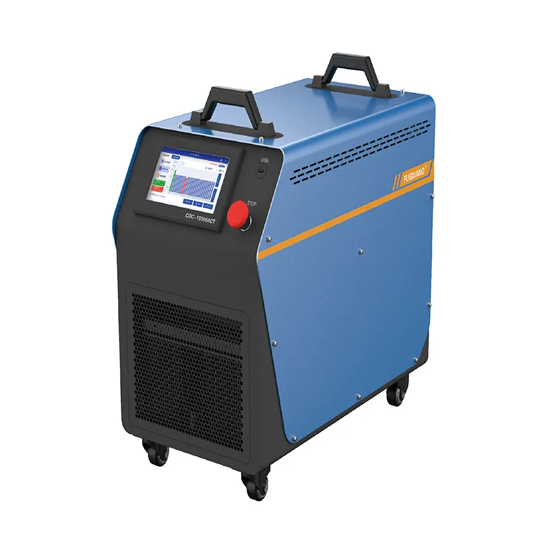

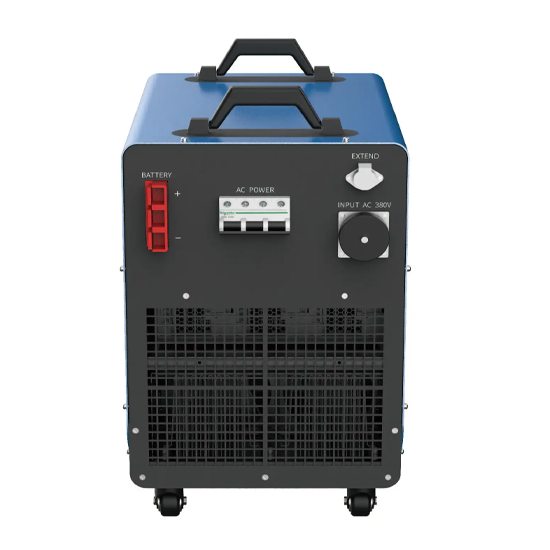

CDC-150050CT Lithium Battery Rack Charger 1500V 50A with BMS Communication for Energy Storage

Model Number CDC-150050CT
Type Voltage, current
Support battery Other
Maximum Measuring Voltage 1500V
Flashlight Other
Product Name BESS Rack Charger
Application Lithium Battery Rack Charge
Function Charging Test
Charging Mode C-current / C-voltage

EMAIL

Overview

The CDC-150050CT is an advanced intelligent charger by BattFix, designed specifically for energy storage lithium battery racks. With support for various BMS protocols, it adapts to the unique charging characteristics of energy storage systems, ensuring precise and reliable charging tests across multiple battery rack types.

Equipped with a high-definition touchscreen and an intuitive user interface, it simplifies battery management and maintenance, enhancing efficiency and prolonging battery lifespan. The charger is ideal for applications like battery rack recharging, storage maintenance, and after-sales support, making it an indispensable tool for the energy storage industry.

Its versatility and precision make the CDC-150050CT perfect for maintaining optimal battery performance while ensuring safety and reducing downtime.

Application

Suitable for 400V to 1500V system testing.

Widely used in energy storage power stations, new energy sectors, and battery manufacturers.

Functional Characteristics

Wide Voltage Range: Designed for the new energy industry, supporting various battery voltage specifications. The wide range meets the diverse testing needs of customers, improving overall test efficiency.

Intelligent Charging: Features intelligent constant current and constant voltage modes to comprehensively test battery performance.

Cell Voltage Collection (Customizable): Supports real-time cell voltage collection via CANFD during charging, enabling precise capacity estimation and preventing over-discharge and overcharge damage.

Multiple Protections: Allows users to set multiple shutdown thresholds for charging tests. The tester automatically stops when thresholds are reached, preventing battery damage. The device can run the test unattended, saving labor costs.

Intelligent Test Control: Supports manual pause and real-time parameter adjustments (e.g., charge voltage, charge current, test time) during testing.

Multiple Data Interfaces: Equipped with USB, CAN, and other data interfaces, enabling communication with lithium battery BMS, PCs, and other smart devices for comprehensive data management.

Technical Parameter

ModelCDC-150050CT
Battery Group Voltage
400-1500V
Charge Current1-50A
Charge Power40kW max
Charge Modeconstant current, constant voltage and current reduce
Protection

DC input overvoltage

overcurrent

battery polarity reversed Connection

over-temperature

Battery Voltage CollectionCANFD
Control Accuracy

test current ≤ ±1%FS+0.2A;

string voltage ≤ ±0.2%FS+0.3V;
Communication PortUSB
Cooling Modeforced-air cooling
Temperature
working: -5-50°C; storage: -20-70°C
Power Input
single-phase three-wire 110-240Vac,
frequency: 40-60Hz
Dimension (mm)
640*340*525 mm
Weight (kg)
38.25
