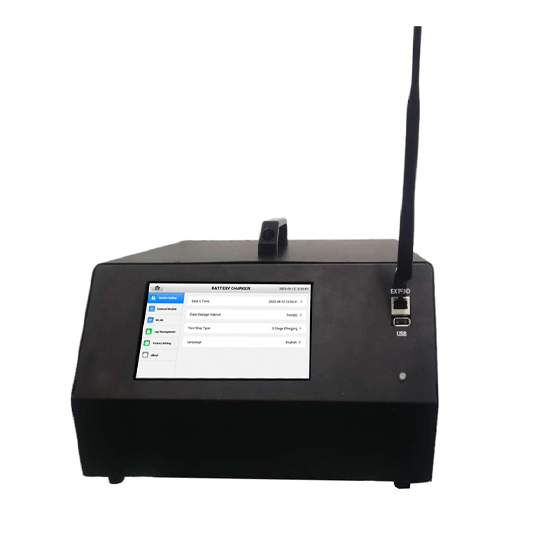

C19C-6050 High-Efficiency Battery Charger for Lithium and Lead-Acid Batteries

Voltage Range 0~60V
Voltage Accuracy ±1%FSR
Voltage Resolution ±0.1V
Current Range 0~50A
Current Accuracy ±1%FSR
Current Resolution ±0.1A

EMAIL

Overview

The C19C-6050 Battery Charger utilizes advanced high-frequency power supply technology and intelligent dynamic charging adjustment for optimal performance. Featuring a three-stage charging mode (constant current, constant voltage, and float charging), it ensures high charging efficiency while protecting battery life. The charger automatically stops and shuts down once the battery is fully charged, preventing overcharging or undercharging.

Additionally, it offers multiple safety protections, including reverse polarity connection, overload, short circuit, and over-temperature safeguards. The charger also includes convenient functions like delayed start, soft start, and automatic restart after power outages.

Functional Characteristics



High Accuracy Testing: The charger features an independent voltage acquisition port to ensure precise string voltage measurement, unaffected by cable voltage drops.

Customizable Settings: Supports tailored test steps, data reporting, and alarm settings to meet specific customer requirements.

Wireless Cell Module Connection (Optional): Allows wireless connection of cell voltage monitoring modules to track real-time voltage of each cell during charging, with over-voltage protection.

Temperature Module Connection (Optional): Supports multi-channel external temperature sensors, customizable according to user needs.

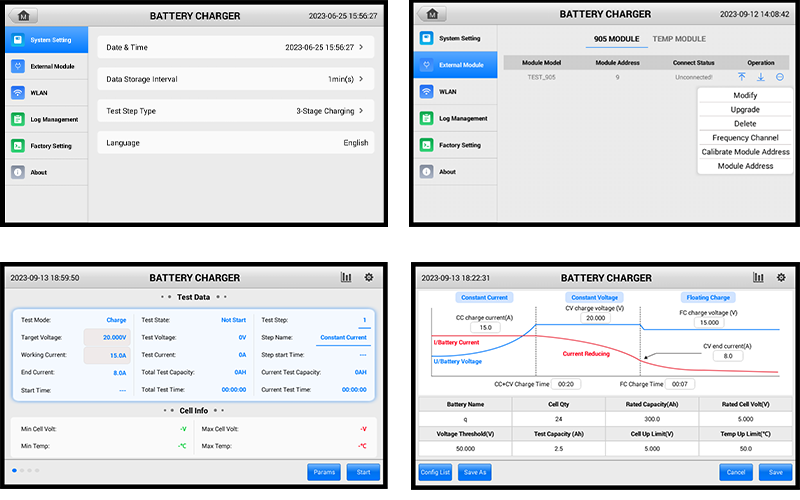

Intelligent Control: Equipped with a 7-inch LCD touchscreen for easy operation, displaying real-time data and graphs, providing intuitive control over the charging process.

Adjustable Output: Offers continuous adjustment of output voltage and current to accommodate varying battery needs.

Multiple Communication Interfaces: Includes intelligent data interfaces such as RS485, USB, and WLAN for seamless communication and monitoring.

Advanced Intelligent Features: Automatically adjusts charging parameters based on battery information. It controls float charging voltage, current, and time independently and can switch between equalized and float charging modes automatically.

Technical Parameter

ModelC19C-6050
Voltage Range0~60V
Voltage Accuracy±1%FSR
Voltage Resolution±0.1V
Current Range0~50A
Current Accuracy±1%FSR
Current Resolution±0.1A
Protection

AC input over-voltage / battery polarity reverse connection /

battery overcharge / output short-circuit / over temperature

Voltagesingle-phase + PE; 220Vac, frequency: 45~55Hz, 10A max
Temperature Rangeworking: -20~60°C; storage: -20~60°C
Humidity
≤85%, without condensation
Cooling
air-cooling
Withstand Voltageinput-shell: 1500Vac / input-output: 1500Vac / output-shell: 500Vac
