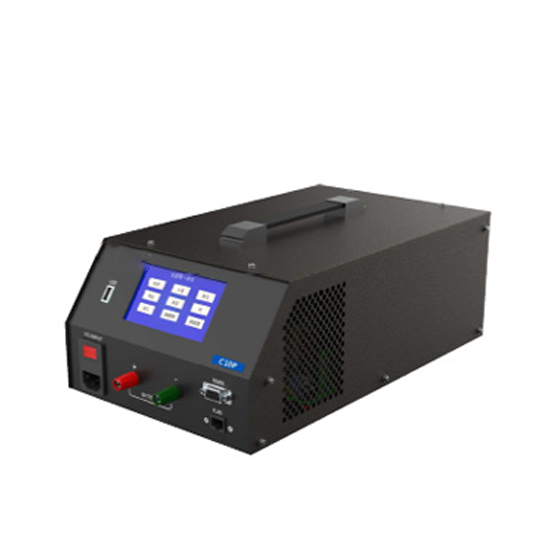

C19P Two-Wheel Vehicle Lithium Battery Inspection Instrument for Efficient Battery Testing

AC Input single-phase three-wire 220VAC, frequency range: 40-60Hz
DC Input
input voltage: 30-80VDc
Communication
RS485
Data Download
bluetooth, RS485

Overview

The C19P is an advanced e-bike battery maintenance tool designed for efficient charge and discharge testing of lithium battery packs. It provides real-time monitoring of key parameters like voltage, current, and test duration, ensuring precise assessment of battery performance. With customizable stop thresholds, it ensures test safety and protects against overcharging or over-discharging. Wireless data transmission capabilities allow for easy transfer and download of test data, making it convenient for further analysis and tailored maintenance solutions. Perfect for e-bike operators, service centers, and aftermarket battery maintenance, the C19P enhances the reliability and longevity of lithium battery packs.

Application

E-bike Aftermarket: Efficient Battery Pack Charge and Discharge Testing and Maintenance

Functional Characteristics

Multiple Working Modes: Supports discharge, charge, and cycle discharge-charge tests for various battery module cells.

Communication Methods: Features RS485, Bluetooth, and other remote communication options for seamless integration.

Safety Protections: Equipped with cell voltage and temperature monitoring, along with multiple stop thresholds to ensure safe discharge and charge testing.

Parameter Preset: Allows presetting parameters for different battery packs with one-button start. Administrator mode supports parameter adjustments within the voltage range.

Data Record: Built-in memory for auto-saving test records, with wireless communication options to download data easily.

Technical Parameter

Model	C19P
AC Input	single-phase three-wire 220VAC, frequency range: 40-60Hz
DC Input	input voltage: 30-80VDc
Communication	RS485
Data Download	bluetooth, RS485
Data Acquisition	harness acquisition (acquisition box and acquisition harness are optional)
Voltage Accuracy	±0.5%FS Max voltage range: 80V
Current Accuracy	±1%FS+0.1A Max current range: 10A
Protection	Input overcurrent/overvoltage; output overcurrent/over-temperature
Test Voltage Range	10-80V dc
Test Current Range	0-10A
Charge/Discharge Protection	strings overcharge/over-discharge/over-temperature; battery pack fault alarm shutdown
Host Shutdown Protection	over-temperature, overcurrent and current runaway
Polarity Reversal Protection	√
Abnormal Protection	Power cord/main cable lose power protection
Dimension (mm)	400 x 225 x 155
Weight (kg)	5.5
