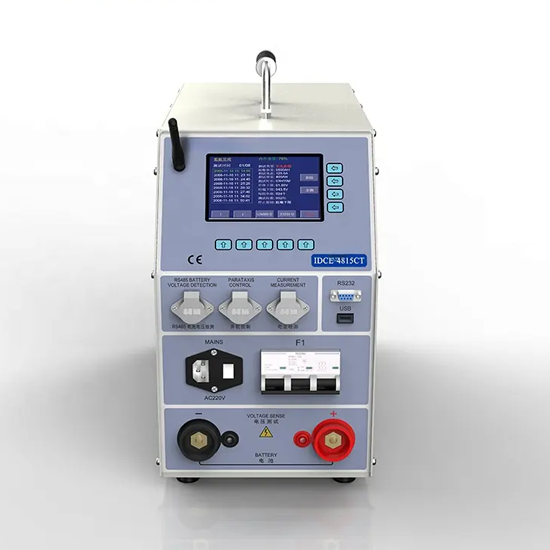

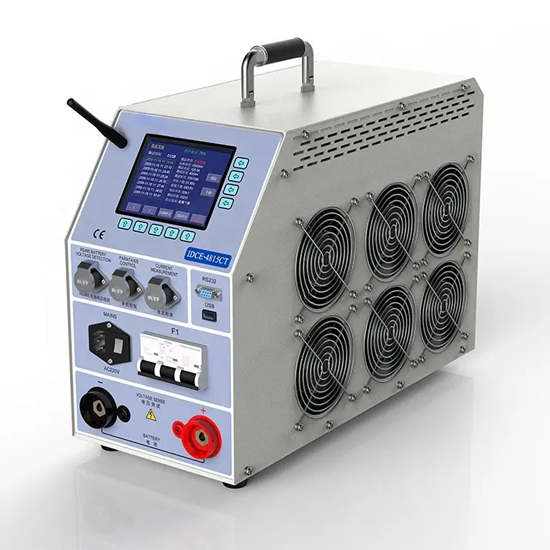

IDCE-CT Series Advanced Battery Discharger and Capacity Testing System

Model Number IDEC-1230CT
Group Voltage Range 90-150V
Discharge Current Range 0-300A
Battery Monitoring Type wireless
Accuracy ≤±0.5%
Display 5.7" LCD touch screen
Dimension(mm) 910*224*629
Weight(kg) 52

Overview

Wireless Battery Monitoring: Utilizes Bluetooth wireless technology for real-time monitoring of 1.2V/2V/6V/12V batteries. Each wireless module can monitor up to 4 batteries simultaneously, reducing the number of modules needed by 75% compared to traditional methods.
Colorful Touch Display: The large, vibrant touchscreen displays detailed data for intuitive, user-friendly operation.
Intelligent Discharge Control: Supports offline and online discharge testing for multiple battery groups (up to 4). Discharge current is continuously adjustable and automatically stabilized by the main unit, ensuring consistent performance even as battery voltage decreases.
Advanced Battery Group Testing: Simultaneously records the discharge currents for each battery group, with additional current clamps available for multiple group testing. The system automatically adjusts to maintain stable discharge current throughout the cycle.
Lag Battery Detection: Includes a manual function to identify batteries with voltage below the threshold, simplifying the detection of lagging batteries during continuous discharge.

SPECIFICATIONS

Type: IDCE-	4815CT	4830CT	1110CT	1230CT	2206CT	2415CT	6003CT	6006CT	60010CT
DC Input
Test Voltage Level	20-60V	90-150V	90-150V		196-300V	300-600V	300-600V
Discharge Current	0-150A	0-300A	0-100A	0-300A	0-60A	0-150A	0-30A	0-60A	0-100A
Working Mode	single main machine / multiple main machine / main machine + extension load(s)
Protective Measures	Input over-voltage protect: LCD prompt, beep warning Battery electrode inversed connecting protect: LCD prompt, beep warning Over-current protect: LCD prompt, beep warning Overheat protect (over 85°C): LCD prompt, beep warning
Accuracy	discharge current: ≤±0.5% / group voltage: ≤±0.5% / battery voltage: ≤±0.5%
PC Communication	RS232 socket
Internal Memory	8Mbit FLASH
Cooling Mode	Air cooling
Temperature	working: -5~50°C / storage: -40~70°C
Humidity	RH: 0~90% (40±2°C)
Altitude	Available below 4000m
Noise	< 60dB
Power Supply	Single-phase 3-wire 220Vac (-20%~+30%), frequency: 45~65Hz
Voltage	IDCE-4815CTE/4830CTE can also support power source from the testing battery group (DC18~56V)
Withstand Voltage	input-shell: 2000Vdc 1min / input-output: 2000Vdc 1min / output-shell: 700Vdc 1min
