Product Name Battery Discharge-Charge Unit
Battery Type Lithium Iron
Function Pack discharge/charge/cycle
Voltage Range 2-280V
Overview
The FGCD Series Lithium Battery Discharge-Charge Unit utilizes cutting-edge charging and discharging technology, offering a wide range of built-in test and maintenance modes. It is designed for discharge, charge, and cycle charge/discharge testing of various lithium battery packs, including those used in electric vehicles (EVs), energy storage systems, and industrial applications.
When an electric vehicle (EV) cannot be fully charged or experiences insufficient voltage, the FGCD unit efficiently detects the true capacity of the battery pack through its discharge mode. After performing necessary maintenance, the unit calibrates the capacity and supplements the battery to ensure it meets the desired cruising range and performance expectations. By integrating cell monitoring and BMS communication, the FGCD provides real-time battery data, quickly identifying lagging cells and significantly reducing the maintenance workload.
With the FGCD, you can lower the cost of battery replacement, increase battery utilization, and minimize overall maintenance and operational costs. This solution enhances the performance and lifespan of lithium-ion batteries, making it the ideal tool for EV battery testing, battery pack diagnostics, and battery maintenance in both personal and industrial sectors.
Application
Battery Manufacturers: The FGCD Series Lithium Battery Discharge-Charge Unit is ideal for after-sales, warehousing, TVC testing, and QA in battery manufacturing, ensuring precise performance testing and enhancing battery longevity.
EV OEMs: EV OEMs use the FGCD for battery maintenance, capacity calibration, and performance validation, optimizing battery efficiency and driving range for electric vehicles.
Service Providers: Battery service providers rely on the FGCD for module charging, discharging, and quick matching, streamlining diagnostics and improving the overall lifespan of battery packs in EVs and energy storage systems.

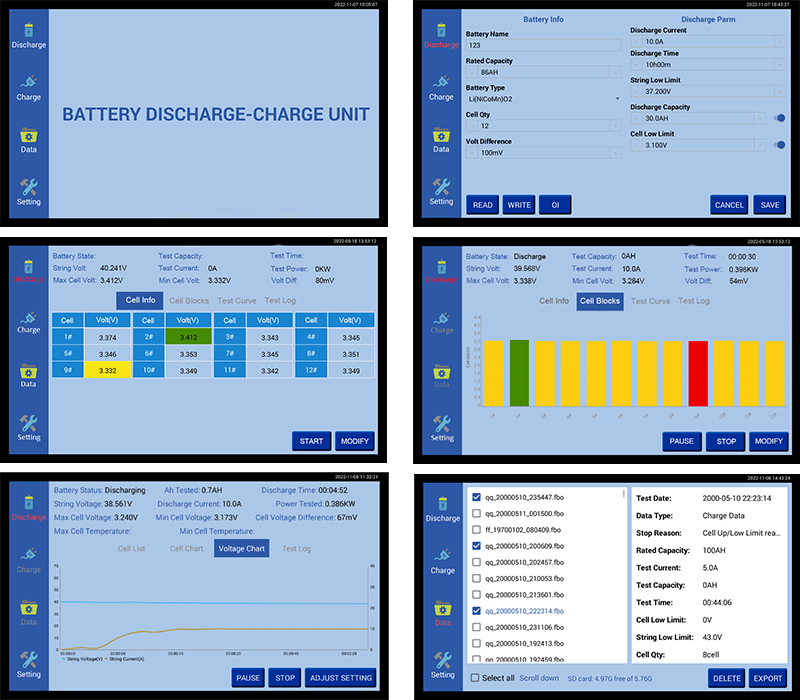

Operating Display
Technical Parameter
BattFix offers a variety of lithium battery testing solutions to meet diverse needs. With models like FGCD-A200CT, FGCD-A300CT, FGCD-10030NT, and FGCD-60030NT, our products are designed for precision and efficiency, ensuring that each unit suits specific battery testing and maintenance requirements.
Precision Testing Made Easy! Choose BattFix for simplified, reliable battery testing solutions that make your operations more efficient and cost-effective.
Model | FGCD-A200CT | FGCD-A300CT | FGCD-10030NT | FGCD-60030NT |
Group Voltage Range | DC 2-285V | DC 2-285V | DC 2-100V | DC 200-600V |
Accuracy & Resolution | ±0.5%FS | ±0.5%FS | ±0.5%FS | ±0.5%FS |
Cell Voltage Range | 0-5V | 0-5V | 0-5V | 0-5V |
Accuracy & Resolution | 0.001V | 0.001V | 0.001V | 0.001V |
Discharge Current Range | 0-100A/7.2KW | 0-100A/7.2KW | 0-30A/2KW | 0-30A/18KW |
Accuracy & Resolution | ±1%FS | ±1%FS | ±1%FS | ±1%FS |
Charge Current Range | 0-80A/4.4KW | 0-80A/6.6KW | 0-30A/2KW | 0-20A/12KW |
Accuracy & Resolution | ±1%FS | ±1%FS | ±1%FS | ±1%FS |
Power Supply | AC220V | AC220V | AC220V | AC380V |
Working Mode | discharge, charge, activation | |||
Communication (PC) | RS485, CAN | |||
Protection | DC input over voltage, polarity reversal, discharge over current, over temperature | |||
Dimension (mm) | 512*295*339 | 512*295*339 | 452*234*286 | 680*554*334 |
Weight (kg) | 25 | 28 | 18 | 40 |
Functional Characteristics
One Machine with Multi-Function: The FGCD Series features a wide voltage range design, making it perfect for discharge, charge, and battery pack activation tests across various voltage levels.
Multi-Discharge Modes: Utilizing high-efficiency aerospace-grade materials and advanced control technology, the FGCD ensures accurate discharge and optimal performance during battery testing, offering multiple discharge modes for versatile applications.
High-Efficiency Charging Mode: The FGCD ensures full battery charge with a high-efficiency charging process, significantly improving battery pack performance and reducing charging time.
Battery Pack Activation: Customize charge and discharge rules and set activation times to maximize battery capacity and longevity, optimizing performance for electric vehicle batteries and energy storage systems.
Communication Method: Supports CAN and RS485 for seamless communication with BMS (Battery Management Systems) and other intelligent devices.
Data Acquisition: The FGCD collects crucial data like voltage, temperature, and other metrics, displaying them in formats such as bar charts, curves, and data tables for comprehensive battery testing analysis.
Protection: The FGCD tester is equipped with a range of protective features including alarms and beeping warnings for issues like reverse polarity, over-temperature, short-circuit, over-voltage, and more, ensuring safe operation during battery testing.
