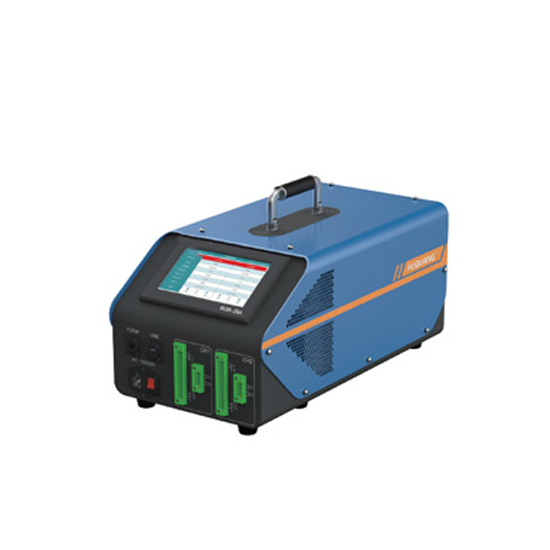

BLSR Series Advanced Lithium Battery Equalization Tester

Display 7-inch TFT LCD touchscreen, 1024*600
PC Comm TCP/IP, USB-Device
Wireless Comm WIFI, BT (internal WIFI antenna)
Data Export export data via USB and generate test report
Charge Mode constant current + constant voltage

Overview

Versatile Applications: Ideal for the daily charge, discharge, and equalization maintenance of lithium-ion cells, module cells, and pack cells.
Wide Voltage Range: Supports a 5V voltage range, accommodating cell balancing across various lithium battery types.
Efficient Equalization Maintenance: Offers charging and discharging equalization based on real-time cell voltage and preset target voltage, ensuring optimal balance.

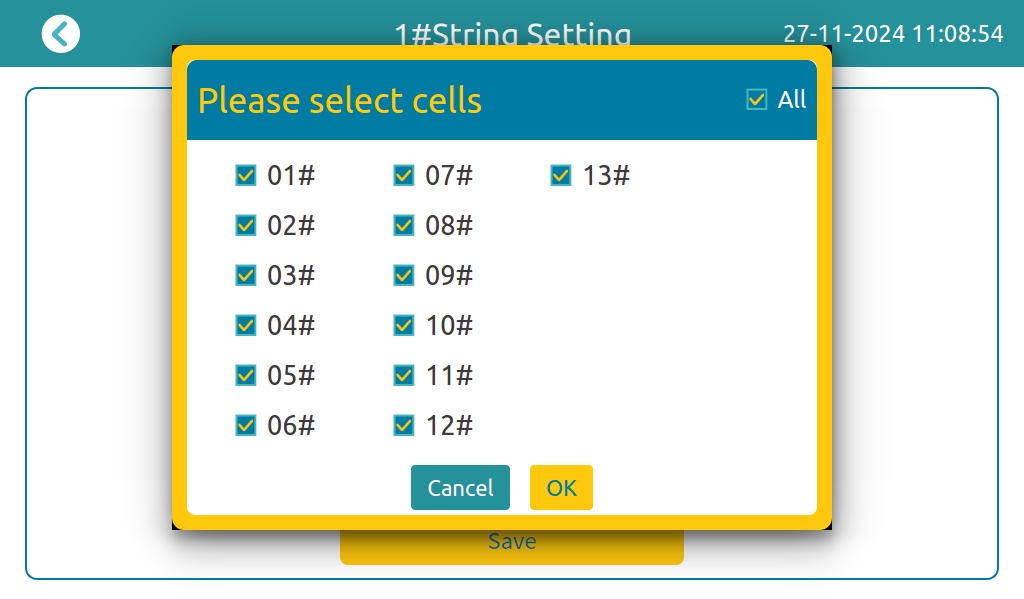

Independent Channel Design: Features 26 separate testing channels, allowing users to select specific channels for equalization while preventing overcharging or over-discharging.
Precision Current Regulation: Adjustable in 50mA steps, meeting high-accuracy equalization requirements.
Accurate Voltage Control: Voltage regulation in 1mV steps ensures precise balancing to achieve target voltage.
Advanced Voltage Clamping: Maintains constant voltage and reduced current to bring cells close to target voltage, enhancing equalization performance.
Comprehensive Protection: Includes customizable test thresholds, real-time monitoring of voltage, current, and temperature, and safeguards against abnormal conditions during testing.
Intelligent Alarms: Triggers automatic test termination with LCD alerts and beep warnings for quick issue resolution.

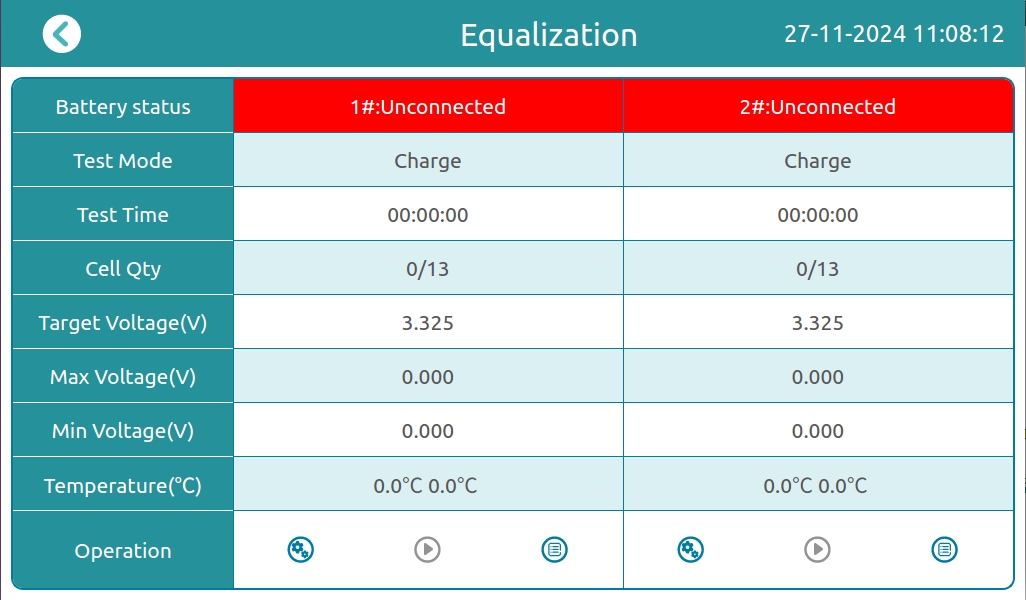

User-Friendly Operation: Features an intelligent operating system with a 7-inch touchscreen, intuitive UI, and straightforward navigation for smarter and more efficient maintenance.
Ample Data Storage: Automatically stores test data, preventing loss during power outages. Data can be exported via USB and analyzed in Excel format.
Calibration and Correction: Ensures measurement accuracy with real-time calibration for voltage, current, and temperature readings.

This advanced equalization tester is designed to improve battery maintenance efficiency, accuracy, and safety while delivering exceptional performance for lithium battery systems.

BLSR-Series 1.png

Specification

Model	BLSR-24A	BLSR-26A
Voltage Range	1.800~5.000V
Voltage Accuracy	±0.1%FS±2mV, 5V max
Current Range	0.1~5.0A
Current Accuracy	±0.5%FS±0.05A, 5A max
Temp Accuracy	±2°C (-25℃~85°C), supports setting overtemperature threshold
Test Cell Qty	2x12, 2 strings max, 12 cells per string	2x13, 2 strings max, 13 cells per string
Test Power	600W max	650W max
Battery Port	Equalization Test: 13 Pin x 2; Temp Acquisition: 4 Pin x 2	Equalization Test: 14 Pin x 2; Temp Acquisition: 4 Pin x 2
Display	7-inch TFT LCD touchscreen, 1024*600
PC Comm	TCP/IP, USB-Device
Wireless Comm	WIFI, BT (internal WIFI antenna)
Data Export	export data via USB and generate test report
Charge Mode	constant current + constant voltage
Discharge Mode	constant current
Protection	input overcurrent, over-voltage; output overcurrent, over-temperature protections
Power Input	AC110/220V
Cooling	forced-air cooling
Temperature	working: -5~40°C; storage: -20~70°C
Humidity	rated humidity: 0~90%（40±2°C）
Dimension	515x246x247mm	515×280×250mm
Weight	12kg	16kg
