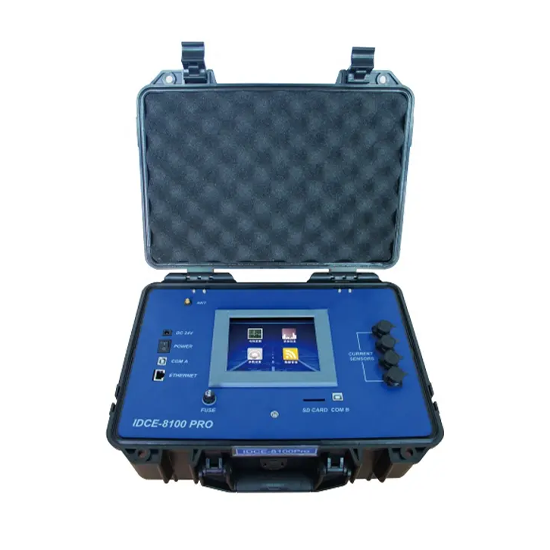

IDCE-8100 Pro Wireless Battery Capacity Monitoring System | Advanced 1-6 Channel Solution

Overview

The IDCE-8100 Pro Wireless Battery Capacity Monitoring System is an advanced online device designed to monitor the discharge and charge processes of battery packs in real time. It automatically records the complete cycle, providing precise estimations of actual battery capacity and performance status.

With its ability to analyze critical parameters, such as bottom voltage, the system offers comprehensive insights, enabling users to quickly and accurately evaluate battery pack performance from multiple dimensions. Perfect for efficient and intelligent battery diagnostics!

SPECIFICATIONS

• Applicable Cell Voltage: Supports 2V, 3.2V, 6V, and 12V cells for versatile testing.

• Cell Test Accuracy: High precision with a margin of ±0.3%.

• Applicable Group Voltage: Unlimited, ensuring flexibility for various battery packs.

• Number of Test Packs: Simultaneously monitors up to 14 battery packs.

• Sampling Time: Fast and reliable with a 5ms interval.

• Current Test Accuracy: Maintains accuracy within ±1%.

• Power Supply: Built-in lithium battery with a runtime of up to 12 hours (optional).

• Current Detection Range: Wide range from 0 to 3000A.

• Dimensions: Compact design at 400 × 300 × 160 mm.
