Voltage Range 200-750V (Adjustable 200-1000V)
AC Input Interface Three-phase four-wire AC 380V ±10% & 50Hz
THD ≤ 3%
Power Factor > 0.99 (Rated Power)

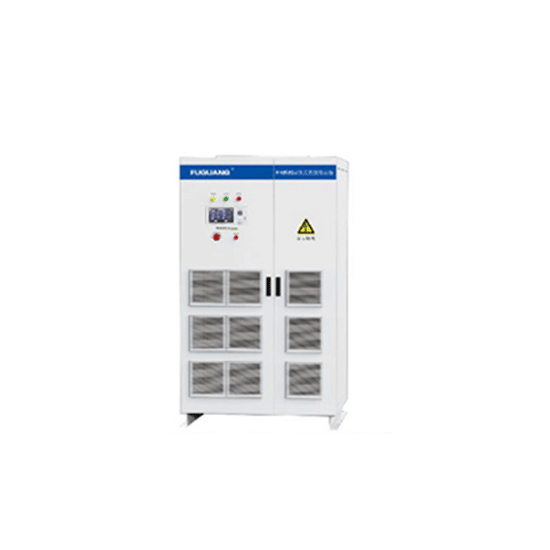

The H Series Regenerative Charging and Discharging System is designed for large-scale battery maintenance in EV factories, 4S stores, and battery storage facilities. This advanced system supports high-power lithium battery packs across a wide voltage range, ensuring safe and efficient charging and discharging. Utilizing regenerative discharge technology, it prevents additional heat generation, making the testing process both energy-efficient and environmentally friendly.
Bidirectional Energy Feedback – The system ensures energy can flow in both directions, automatically adjusting the energy transfer process. During battery maintenance, excess energy is fed back to the three-phase power grid, achieving a DC bus efficiency of ≥93%, significantly reducing power consumption and cooling costs.
High-Power Isolation Transformer – The entire system is electrically isolated from the grid, ensuring fast current conversion without overshoot, enhancing stability and reliability.
Advanced DC/AC Module – Implements space vector modulation technology, increasing voltage utilization and minimizing current harmonics for optimal performance.
PID-Controlled DC/DC Module – Incorporates multi-layer protection mechanisms, ensuring stable operation even under complex working conditions.
External Communication & Control – Seamlessly integrates with external fixtures to receive and execute operational commands for automated testing and control.
CCCV Charging Technology – Ensures a smooth charging process without voltage or current surges, preventing issues like island effect, micro-short circuits, or PCB protection failures caused by peak current accumulation.
High-Precision ADC/DAC – Features a wide dynamic range and high sampling accuracy, ensuring long-term voltage measurement stability.
DCIR Impedance Testing – Conducts real-time load impedance analysis within milliseconds, accurately detecting unstable battery cells and identifying potential performance issues.
Voltage Clamping Protection – During charging, voltage can be clamped at a predefined level to prevent damage to the battery management system (BMS) or protection boards in case of faults.
ECD & EVD Battery Protection – Automatically identifies and isolates faulty or non-compliant battery cells, preventing unsafe charging or discharging operations.
This high-efficiency lithium battery maintenance system is a must-have for large-scale battery facilities, providing intelligent battery diagnostics, advanced energy recovery, and optimized power management for maximum safety and cost savings.
Model | FH-60K | FH-120K | FH-150K | FH-200K |
---|---|---|---|---|
Current Range | 0-80A | 0-160A | 0-200A | 0-250A |
Power | 60kW | 120kW | 150kW | 200kW |
Voltage Range | 200-750V (Adjustable 200-1000V) | |||
AC Input Interface | Three-phase four-wire AC 380V ±10% & 50Hz | |||
THD | ≤ 3% | |||
Power Factor | > 0.99 (Rated Power) | |||
Charging Efficiency | 94% (Rated Power) | |||
Feedback Efficiency | 93% (Rated Power) | |||
Voltage Accuracy | ±0.5% of F.S ±0.1% of F.D | |||
Current Accuracy | ±1% of F.S ±0.5% of F.D | |||
Voltage & Current Detection Sampling | Four-wire connection |
