FBR-5000CT Battery Internal Resistance Tester | High-Precision Battery Health Analyzer

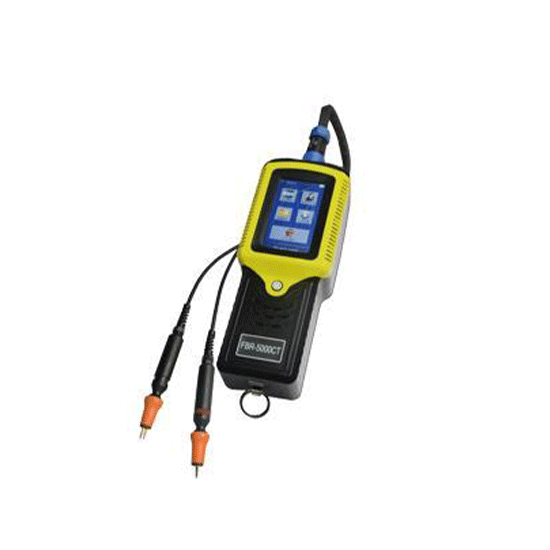

The FBR-5000CT series is a newly developed handheld battery internal resistance tester, utilizing patented technology. It integrates both direct current (DC) and small alternating current (AC) resistance measurement methods, ensuring accurate testing of battery internal resistance even in challenging environments. This device allows for fast evaluation of battery performance and health, helping identify faults and assess battery condition.

Key Features:

• Wide Application: Supports testing of both lead-acid and lithium iron phosphate (LiFePO4) batteries, with compatibility for 2V, 3.2V, 6V, and 12V battery types.

• AC/DC Testing: Offers the flexibility to choose between AC and DC testing modes to guarantee accurate results based on the battery's condition.

• Health Analysis: Enables the setting of standard reference values and alarm thresholds, providing direct insights into the battery’s health based on test results.

• Work Order Module: Customize battery internal resistance testing tasks based on your specific needs for faster and more efficient testing.

• Wireless Data Upload: Features Wi-Fi data transmission, with automatic uploads to a cloud platform for real-time analysis and storage of test results.

• Smart System: Equipped with an intelligent operating system that supports customizable functions to enhance the user experience.

• Comprehensive Testing Kit: Comes with high-quality test leads, including imported pre-load probe wires and testing clamps, along with an extended rod to accommodate various battery types and installation environments.

• Multiple Test Modes: Supports individual cell testing or full-series testing, with results stored for future analysis.

• Expanded Testing Parameters: In addition to internal resistance, the FBR-5000CT can measure voltage, internal resistance, and connection bar parameters.

• Smart File Naming: Allows for easy identification and organization of battery test files by enabling precise naming in Chinese, letters, or numbers.

• Large Touchscreen: The 4.7-inch color touchscreen provides intuitive display of test parameters and simplifies operations.

• Data Management: Test results can be directly reviewed and edited, and data can be exported via a USB port.

• Re-test Function: Allows for quick re-testing in case of operator error, automatically overwriting previous data if needed.

• Overvoltage Protection: The device features overvoltage protection for inputs greater than 100V DC, preventing potential damage from incorrect connections.

• Automatic Calibration: Automatically calibrates before each test to ensure maximum accuracy.

Applications:

• Battery Maintenance and Management: Ideal for routine battery maintenance and health checks.

• New Battery Acceptance and Installation: Used for testing and inspecting new batteries during installation and setup.

• Battery Disposal: Provides data and insights for decision-making regarding battery disposal.

• Battery Manufacturer Quality Control: Supports battery manufacturers in quality control processes and technical development.

The FBR-5000CT series offers intelligent, efficient, and accurate internal resistance testing, helping users optimize battery performance, detect faults early, and enhance battery life management. Whether you're managing batteries in power systems, electric vehicles, or renewable energy storage, the FBR-5000CT is an indispensable tool for reliable battery diagnostics.
