Fluke 1735 Portable Three-Phase Power Quality Analyzer – Accurate Energy Monitoring & Analysis

Phase Voltage Measurement 115/230/480V AC ± (0.2% of mv + 5 digit) ± (0.5% of mv + 10 digit) 0.1V
Line Voltage Measurement 200/400/830V AC ± (0.2% of mv + 5 digit) ± (0.5% of mv + 10 digit) 0.1V

EMAIL

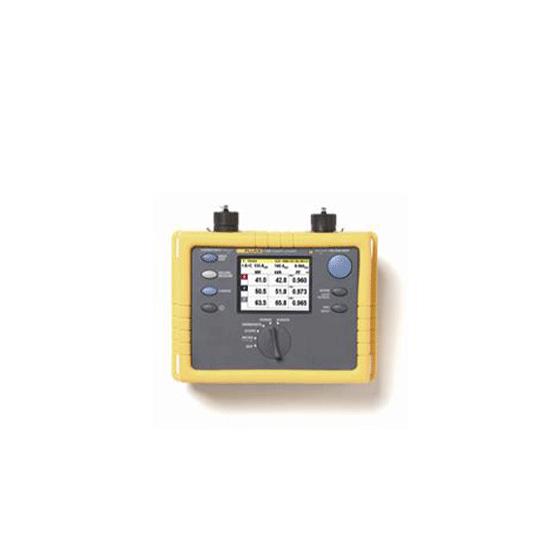

Fluke 1735 Three-Phase Power Quality Analyzer + Oscilloscope + Data Logger

The Fluke 1735 Power Quality Analyzer is a versatile instrument that combines power analysis, waveform monitoring, and data logging capabilities. Designed for electrical engineers and field maintenance professionals, this advanced tool provides comprehensive power quality analysis to help diagnose power distribution networks, detect electrical disturbances, and optimize energy efficiency.

The Fluke 1735 is an ideal energy study and basic power quality recording tool for technicians. With flexible current probes and an intuitive display, setup is completed within seconds. It can record most power parameters, analyze harmonics, and capture voltage events, making it an essential diagnostic tool for power distribution systems.


Key Features & Benefits

Comprehensive Power Quality Measurements

  • Measures voltage, current, frequency, power, power factor, energy consumption, harmonics, and waveform distortion, ensuring complete power quality analysis.

  • Provides real-time harmonic distortion analysis, detecting harmonic interference from electronic loads. Displays total harmonic distortion (THD) values and individual harmonic components for in-depth troubleshooting.

Long-Term Power Monitoring & Data Logging

  • Continuous monitoring for up to 45 days, recording voltage, current, harmonics, power, and other critical power quality parameters to track system performance over time.

  • Power quality overview mode simplifies troubleshooting, load analysis, and energy monitoring, enabling engineers to identify and resolve electrical disturbances efficiently.

Advanced Event Capture & Energy Efficiency Analysis

  • Captures power disturbances, including voltage sags, interruptions, and overvoltage events, providing insight into potential system failures.

  • Supports energy consumption analysis, enabling businesses to track power usage trends and verify the effectiveness of energy-saving measures.

User-Friendly Interface & Flexible Operation

  • Plug-and-play setup with one-button testing for quick and accurate measurements.

  • Intuitive data storage & retrieval: Easily save screenshots and view recorded measurements directly on the instrument.

  • Flexible current probe integration: Comes with four flexible current probes to measure all three phases and the neutral wire simultaneously.

Powerful Data Visualization & Reporting

  • Includes PowerLog software for graphical analysis and professional report generation, streamlining power audits and compliance reporting.

  • Large, backlit color display: Enables clear visualization of waveforms, harmonic analysis, charts, and power parameters, even in low-light environments.

Versatile Applications for Power Quality Diagnostics

  • Network System Troubleshooting: Detects and diagnoses power anomalies and waveform distortions caused by electrical loads.

  • Telecommunication Equipment Maintenance: Ideal for onsite troubleshooting and field repairs of communication devices.

  • Base Station Power Quality Monitoring: Tracks and identifies power fluctuations that cause equipment malfunctions.

  • Substation Interference Detection: Locates and analyzes power disturbances affecting grid stability.

The Fluke 1735 Power Quality Analyzer is a powerful, easy-to-use tool for professionals engaged in power quality analysis, electrical troubleshooting, and energy efficiency optimization. Whether in industrial, commercial, or telecommunication environments, it provides precise, reliable power diagnostics to enhance electrical system performance and reliability.


Test ItemRangeIntrinsic ErrorOperating ErrorAccuracy
Phase Voltage Measurement115/230/480V AC± (0.2% of mv + 5 digit)± (0.5% of mv + 10 digit)0.1V
Line Voltage Measurement200/400/830V AC± (0.2% of mv + 5 digit)± (0.5% of mv + 10 digit)0.1V
Current Measurement15A or 5mV± (0.5% of mv + 20 digit)± (1% of mv + 20 digit)0.01A

150/3000A or 50/500mV± (0.5% of mv + 10 digit)± (1% of mv + 10 digit)0.1A
Frequency Measurement45~65Hz± (0.2% of mv + 5 digit)± (0.5% of mv + 10 digit)0.01Hz
Power Measurement0~2.5MW± (0.7% of mv + 15 digit)± (1.5% of mv + 5 digit)1W~1kW
Power Factor0~1±1%-0.001
Harmonics0~40± 0.5%-0.1%
Events0~999 events± (1% of mv + 10 digit)± (2% of mv + 10 digit)0.1V
