48V 150A MINI IDCE-4815CT Battery Discharger and Capacity Testing Solution

Overview

48V is one of the most popular voltage levels for battery applications across various industries.

Telecommunication
48V battery groups are commonly used as backup power for telecom DC systems, ensuring uninterrupted operation of critical telecom devices during power outages. Regular discharge testing is essential for assessing battery performance and reliability, ensuring that the backup power supply remains functional when needed most.

Forklifts & Golf Carts
In electric forklifts and golf carts, 48V battery groups serve as the primary power source. While daily use helps gauge battery capacity, constant current dischargers are crucial for the battery regeneration process, extending the life of the battery and maintaining optimal performance.

Power Plants & Oil Companies
In energy companies, 48V battery groups provide standby power for remote control and monitoring systems. Regular discharge testing enhances the stability of communication networks and ensures reliable backup power, which is essential for smooth operation in remote locations.

FEATURE

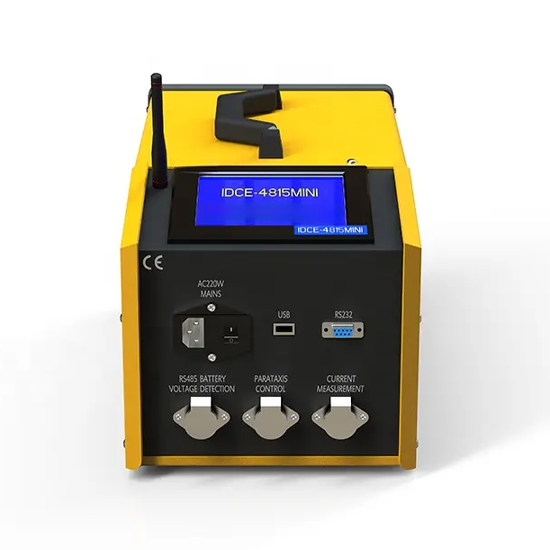

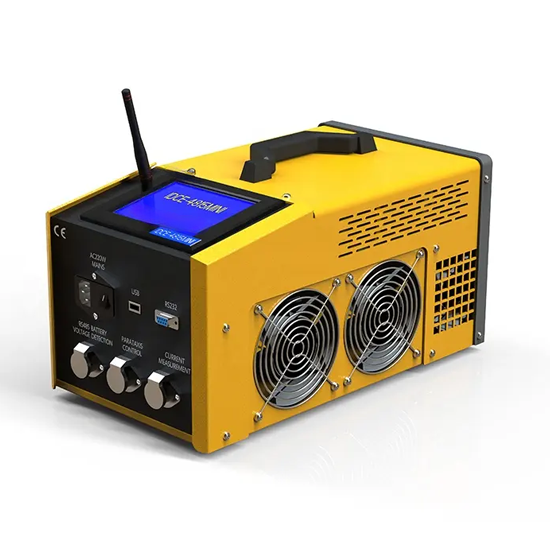

The IDCE-4815CT MINI offers adjustable current from 0-150A, making it versatile for various battery discharge testing needs. It supports both DC and AC power supplies, ensuring continuous operation even during power outages. The 5.7-inch touch LCD provides real-time data and graphs, while the intuitive menu simplifies the operation process.

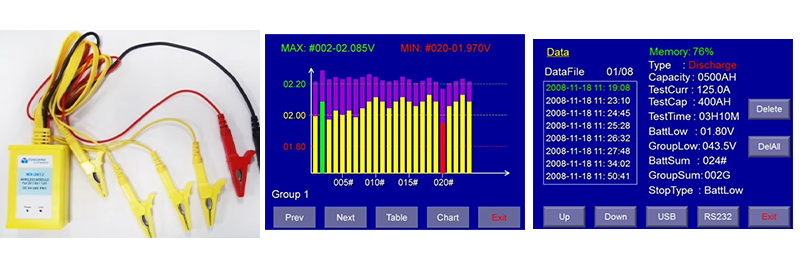

This device features multiple adjustable stop points to prevent excessive discharge, a presetting function with 8 locations for easy setup, and internal memory that automatically saves discharge records. Additionally, it supports wireless voltage monitoring for 1.2V/2V/6V/12V battery cells, improving the ease and flexibility of testing compared to traditional methods. The IDCE-4815CT MINI also includes intelligent fault detection, automatic termination, and alarms for added safety. Its extendable design allows compatibility with other units in the IDCE-CT series for expanded testing options.

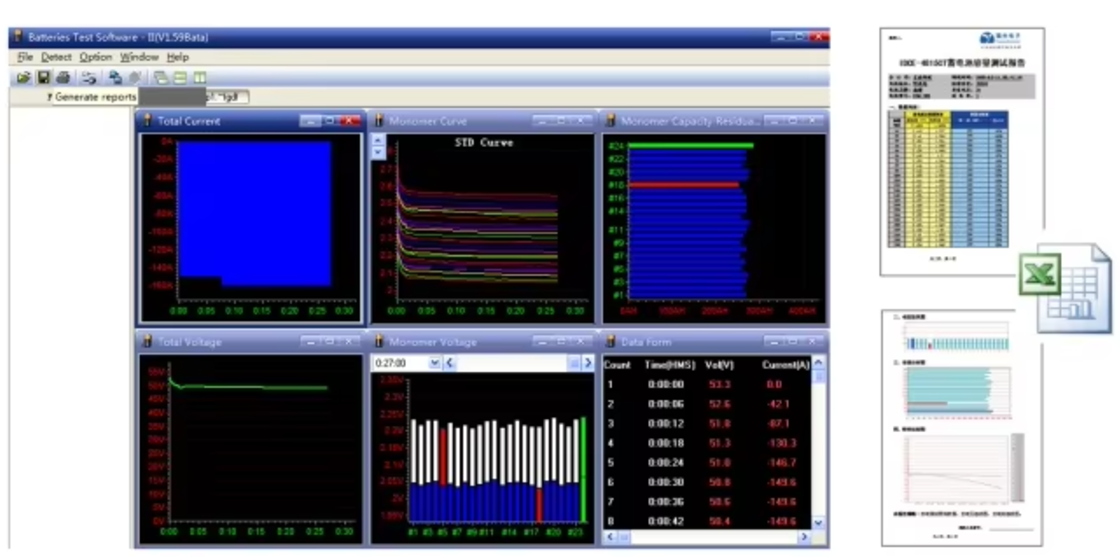

PC ANALYSIS SOFTWARE

The software supports real-time data downloading and analysis via USB or communication interface. It includes various visualizations such as battery voltage curves, resistance bar charts, group voltage curves, current curves, and capacity histograms. The powerful capacity estimation function predicts the capacity of each battery in the group.

Data can be displayed in bar charts, curves, or tables, with options to zoom in or out for detailed views. The software also generates automatic Excel reports for easy data sharing and download.

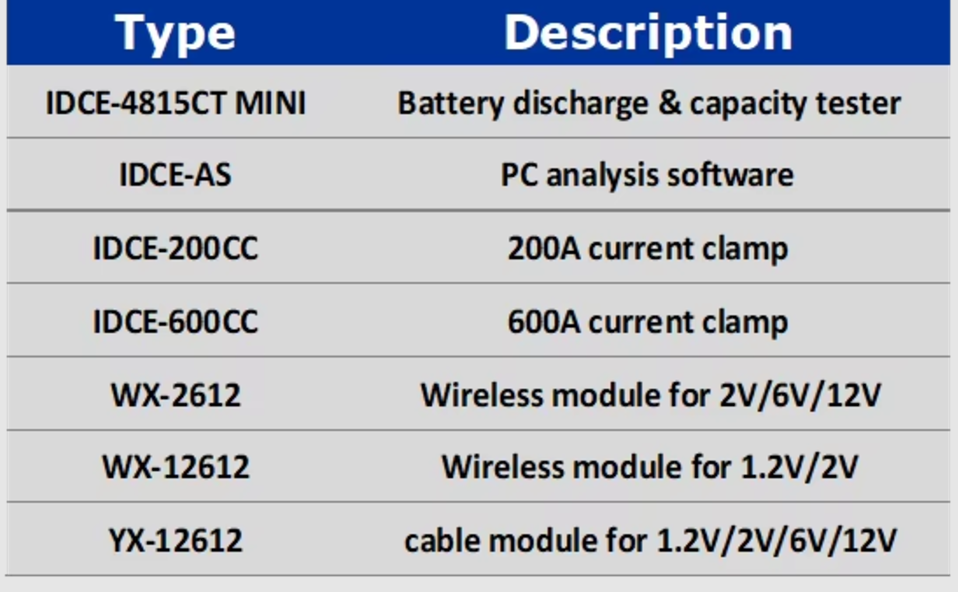

Ordering Information
