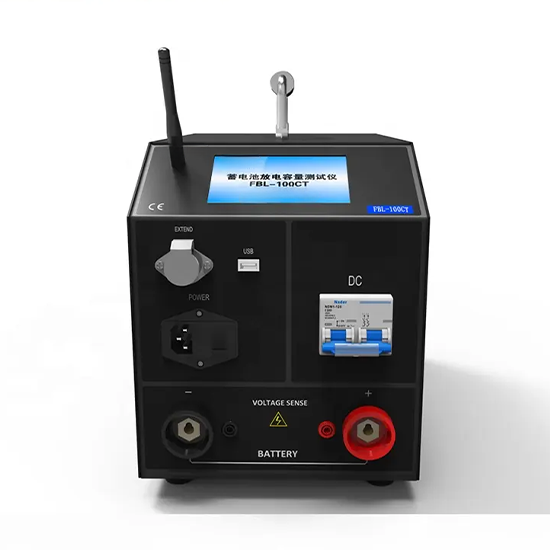

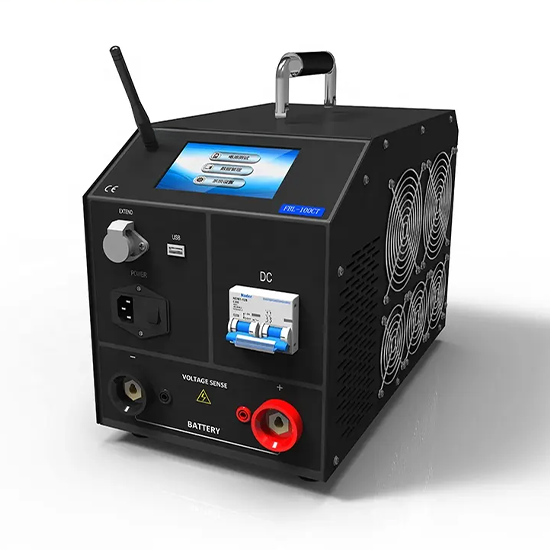

Model Number IDCE-930CT
Group Voltage Range 10-240V
Discharge Current Range 0-300A
Battery Monitoring Type wireless
Accuracy ≤±0.5%
Display 7" LCD touch screen
Dimension(mm) 505 x 346 x 296
Weight(kg) 28
Battery discharge testing is the most reliable method for evaluating battery capacity, as it accurately simulates the working conditions under load. While other battery testing methods, like resistance testing, are widely used, they cannot provide the same level of precision. For utilities and industries with varying voltage level battery systems (24V, 48V, 110V, 120V, 220V, 240V), an automatic and intelligent battery discharge tester is essential for simplifying the discharge process and ensuring precise battery capacity evaluation.
FEATURES

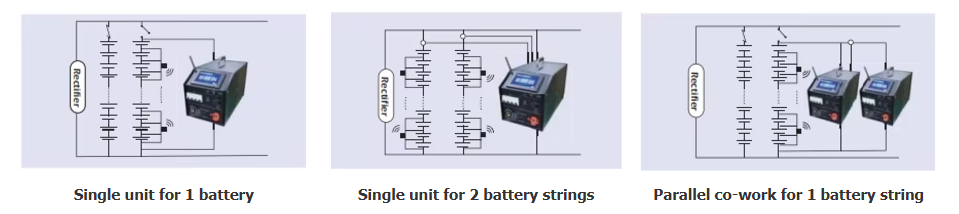

IDCE-930CT can support 12-240 V battery groups, the application of IDCE-930CT includes:
IDCE-930CT offers 4 adjustable points for test stop points to avoid excessive discharge:
IDCE-930CT provides 3 discharge modes for different test requirements:
The large touch LCD displays all real-time data and graphs, supporting direct touch operations. Its user-friendly input method and intuitive menu design simplify the operating process.
Wireless modules for cells voltage measuring are available for 1.2V/2V/6V/12V batteries voltage monitoring during discharge test.

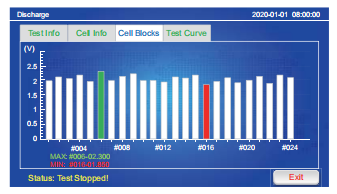

With proper number wireless modules, main tester can real time scan and display the voltage data of each battery during the discharging, and display the histogram of all batteries to follow the battery voltage tracks in whole discharging process.
Intelligent judge program: IDCE-930CT can identify the situations that the battery voltages reach the threshold value or the signal missing by manual mistake. Avoiding manual interruption in the discharging, this revolutionary program makes the test stable and smooth. IDCE-930CT also supports cable modules for special requirements.

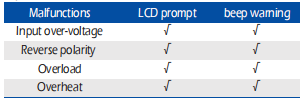

IDCE-930CT provides ample protective measures for various abnormal situations during discharge. Automatic termination, LCD prompt and beep warning would assist users to make proper treatments.
PC SOFTWARE

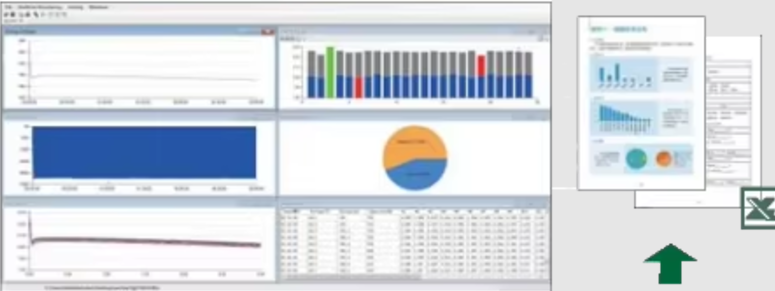

Supports real-time data downloading and analysis through direct communication or USB memory devices. The software interface displays key metrics such as battery voltage curves, resistance bar charts, group voltage curves, current curves, capacity histograms, and data tables for in-depth battery performance analysis.
TYPICAL APPLICATIONS
Discharge Ranges | |
Voltage range | Current range |
8-54V (12/24/36/48V) | 0-300 A |
54-64V (60V) | 0-220 A |
64-85V (80V) | 0-160 A |
85-110V (96V) | 0-140 A |
95-150V(110V) | 0-120 A |
150-265V(220V) | 0-60 A |
150-285V(240V) | 0-50 A |
Type | Description |
IDCE-930CT | Battery discharge & capacity tester |
IDCE-AS | PC analysis software |
IDCE-200CC | 200A current clamp |
IDCE-600CC | 600A current clamp |
WX-2612 | Wireless module for 2V/6V/12V |
WX-12612 | Wireless module for 1.2V/2V |
YX-12612 | Wired module for 1.2V/2V/6V/12V |
