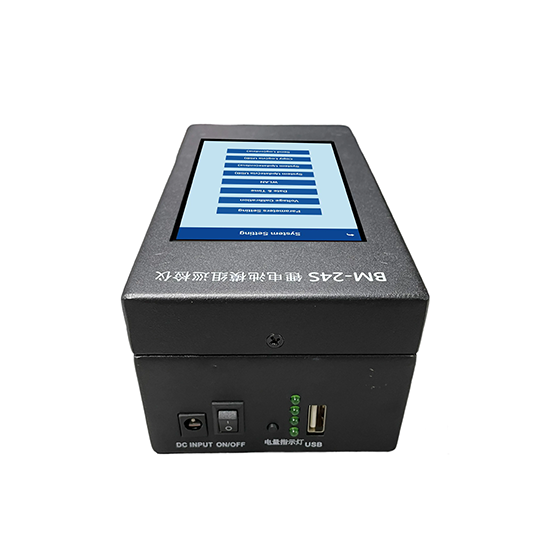

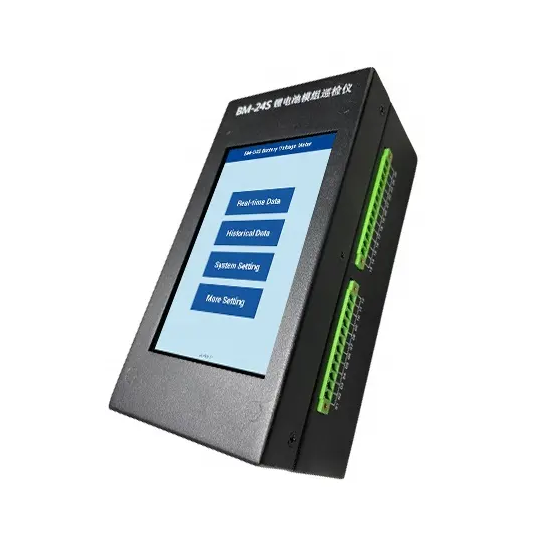

BM-24S Lithium Battery Voltage Meter - Cell Voltage Collector & Voltage Measurement Detector

Model BM-24S
Product name Lithium Battery
Application Battery Cell Inspection
Function Cell Voltage Measurement
Channels 24-channel
Power Supply AC100-264V/50-60Hz

EMAIL

Overview

BM-24S rapidly measures cell voltages in lithium battery modules, evaluating the balance of the entire battery pack. With 24-channel support, it boosts testing efficiency, making it ideal for after-sales service, storage, and transportation of lithium batteries.

Application

Fast and Efficient Lithium Battery Inspection for After-Sales, Storage, and Transportation

Functional Characteristics

24-Channel Voltage Measurement: Supports up to 24 channels for simultaneous voltage acquisition, with a voltage measurement range of DC 0-5V.

Data Storage & Output: Features data storage function, with the ability to export results in EXCEL format for easy analysis and record keeping.

Flexible Display: Switchable display modes for positive or negative voltage order, offering customizable settings for different user preferences.

Portable & Convenient: Compact design for quick and easy inspection of lithium batteries in various working conditions, ideal for after-sales, storage, and transportation checks.

Technical Parameter

Model

BM-24S

Voltage Range

0.000V-5.000V

Voltage Accuracy

±0.2%FS+5mV@5V

Number of Acquisition String

1-24S

Display

4.7-inch color touch screen

Storage

Barcode Scanner Extension

Data Port

USB

Dimension(mm)

150*80*56

Weight(kg)

0.5
