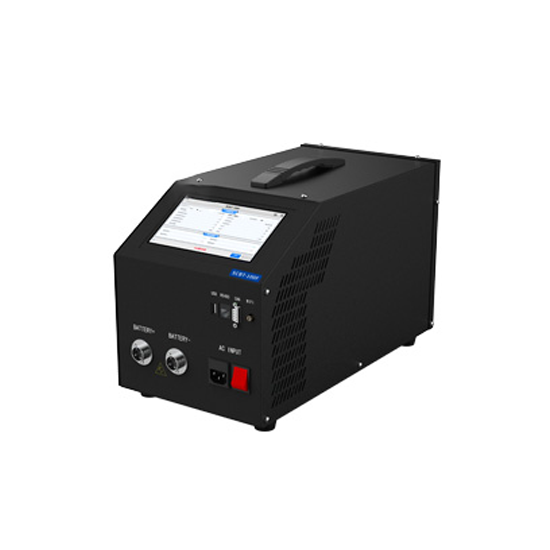

SCBT Series Home Energy Storage Battery Testing Unit for Efficient Discharge and Charge

Overview

The SCBT Series PACK Discharge-Charge & BMS Verification Tester is designed to efficiently conduct intelligent charge, discharge, and cycle testing on lithium-ion battery packs. Its low-current, high-precision charging mode supports passive balancing of the battery management system (BMS), ensuring proper cell voltage balance within the battery pack.

This tester is essential for verifying BMS protection features such as overvoltage, overcurrent, and temperature safeguards. It is widely used in production delivery, inventory maintenance, pre-installation verification, and after-sales services, making it a versatile tool for various stages of battery pack lifecycle management.

Application

Energy Storage Pack Daily Charge & Discharge Maintenance

Regular charge and discharge maintenance is essential for energy storage systems to prevent capacity degradation. Before transportation, the pack should undergo discharge to ensure it remains in optimal condition. Upon arrival at the warehouse, it should be charged promptly to prevent any capacity loss that could shorten its lifespan.

Pack Performance Detection & Verification Before Installation
The tester performs comprehensive BMS function verification and capacity testing before the installation of the energy storage battery pack. This ensures that the battery meets performance standards and is qualified for use in critical applications, minimizing the risk of early failure.

Energy Storage Pack Fault Location & Analysis
With advanced diagnostic features, the tester supports fault location and performance analysis for energy storage packs. It helps quickly identify and resolve issues, ensuring the battery pack operates at maximum efficiency and reliability.

Functional Characteristics

Wide Voltage Range: Supports discharge and charge testing across a full voltage range of 0~120V, meeting the performance verification needs of lithium battery packs in the home energy storage industry.

High Current Allowance: Compact design with high power density; each model offers a customizable charging and discharging current range (100F: 30A, 200F: 50A, 300F: 100A), addressing diverse testing requirements for various battery applications.

High-Accuracy Current Control & Sampling: Provides precise current control and sampling with 0.1A resolution, perfect for lithium battery pack testing, charge/discharge tests, and passive equalization.

Highly Intelligent System: Featuring an advanced smart operating system, the tester integrates CAN, RS485, and USB communication ports to enable real-time BMS communication and follow-control logic. It also supports intelligent test step settings, allowing for one-click test initiation.

7-inch Touchscreen Display: A large 7-inch LCD touchscreen displays all test parameters, processes, and results, providing an intuitive interface for easy monitoring and real-time test tracking.

High Charging Accuracy: The charging module integrates active PFC, offering a power factor of >98%, ensuring highly efficient testing while avoiding any interference with the power grid.

Multiple Protections: Includes over-voltage, overcurrent, reverse polarity, short-circuit protection, and more, ensuring safe operation and battery protection during tests.

Customization Supported: The tester allows for customized interfaces, test progress adjustments, and step modifications, making it adaptable to specific testing needs.

Technical Parameter

BattFix offers a variety of models within each product series, such as the SCBT series with models like SCBT-100F, SCBT-200F, and SCBT-300F. Each model is specifically designed to meet different testing needs, ensuring you get the precision and performance required for your battery testing. Precision Testing Made Easy! Choose BattFix for a more efficient and flexible testing experience.
