Model Number CDC-A4850
Output Frequency 50-60Hz
Input Current 15A
Input Mode L+N+PE
Power Factor >0.99
THD <10%
Overview

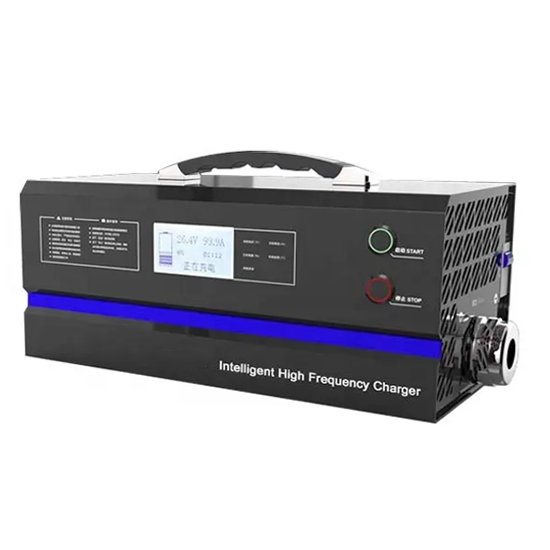

The Intelligent High-Frequency Charger is designed for efficient, cyclic charging of lead-acid batteries, power lithium batteries, and super capacitors. Using high-frequency switching power supply technology and a modular structure design, it includes key components like the power factor correction unit, power conversion unit, monitoring unit, display unit, electrical control unit, and communication protection unit. The fully automated charging process ensures intelligent battery management for optimal performance and longevity.
Functional Characteristics
Product Features | |
---|---|
Efficient |
|
Safe |
|
Convenient |
|
Intelligent |
|
Application
Technical Parameter
Specification | Model | |||
---|---|---|---|---|
CDC-A24100 | CDC-A4850 | CDC-A8030 | CDC-A12025 | |
Voltage Level | 24V (18-30V) | 48V (30-60V) | 80V (40-100V) | 120V (60-132V) |
Rated Current | 1-100A | 1-50A | 1-30A | 1-25A |
Input Voltage | 90-264V | |||
Input Current | 15A | |||
Output Power | 3KW | |||
Input Mode | L+N+PE | |||
Power Factor | >0.99 | |||
THD | <10% | |||
Efficiency | >95% | |||
Ripple Current | ±3% | |||
Current Accuracy | ±0.5% | |||
Voltage Accuracy | ±0.5% | |||
Ripple Voltage | ≤±1% Vo peak-to-peak value, 20MHz bandwidth | |||
Charging Accuracy | Voltage: 0.01V; Current: 0.1A; Time: 1S | |||
BMS Power Supply | 12V / 24V optional | |||
Protection | OTP, OVP, OCP, short circuit, reverse polarity | |||
Connector | Anderson / REMA / customizable | |||
Communication | RS485 / RS232 / CAN Bus | |||
MTBF | 80,000H | |||
Safety Standard | Comply with CE, IEC61851 standards | |||
Display | LED | |||
Cooling | Fan cooling | |||
Environment | Working Temp: -20°C~65°C (>40°C, reduced power); Working Humidity: 20-90%RH; Storage Temp: -40°C~85°C; Storage Humidity: 10-95%RH |
