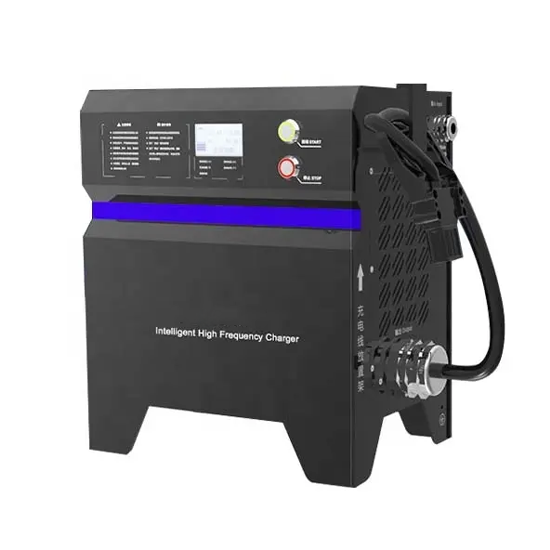

CDC-B8060 6KW/80V Intelligent High-Frequency Charger

Model Number CDC-B8060
Output Frequency 50-60Hz
Input Current 30A

Overview

The Intelligent High-Frequency Charger is designed for efficient and reliable battery charging, ideal for cyclic work charging of lead-acid batteries, power lithium batteries, and super capacitors. It employs high-frequency switching power supply technology with a modular design, combining key components such as the power factor correction unit, power conversion unit, monitoring unit, display unit, electrical control unit, communication protection unit, and charging connection.

The charger offers a fully automated charging process, ensuring intelligent and optimized management for lead-acid, lithium, and super capacitor batteries.

FEATURE

Efficient Performance:

95% conversion efficiency
Power Factor Correction (PFC) >99
Total Harmonic Distortion (THD) ≤10%
Voltage range: 90-264V
High-frequency ZVS + MOSFET technology

Safety & Reliability:

Modular design for flexibility and durability
Ripple current: ±3%
Output ripple voltage: ±1%
Output current accuracy: ±2%
Patented cooling module for enhanced safety

Convenience:

LCD/LED display for easy monitoring
Charging scene lighting for visibility
Detachable dust screen for easy maintenance
One-button operation for user-friendly control
RS485/232/CAN communication for versatile connectivity

Intelligent Charging:

Load redundancy design for stable performance
Intelligent compensation charging algorithm
1000 historical alarm records for diagnostic reference
Intelligent charging management for lead-acid batteries
Customizable battery charging management for various applications

Technical Parameter

Model	CDC-B24200	CDC-B48100	CDC-B8060	CDC-B12050
Voltage Level	24V (18-30V)	48V (30-60V)	80V (40-100V)	120V (60-132V)
Rated Current	1-200A	1-100A	1-60A	1-50A
Input Voltage	220V±20% / 380V±20%
Input Current	30A
Output Power	6KW
Input Mode	L1+L2+L3+PE / L1+L2+L3+N+PE
Power Factor	> 0.99
THD	<10%
Efficiency	> 95%
Ripple Current	±3%
Current Accuracy	±0.5%
Voltage Accuracy	±0.5%
Ripple Voltage	≤±1% Vo peak-to-peak value, 20MHz bandwidth
Charging Accuracy	Voltage: 0.01V; current: 0.1A; time: 1S
BMS Power Supply	12V / 24V optional
Protection	OTP, OVP, OCP, short circuit, reverse polarity
Connector	Anderson / REMA / customizable
Communication	RS485 / RS232 / CAN Bus
MTBF	80000H
Safety Standard	comply with CE, IEC61851 standards
Display	touch LCD
Cooling	fan cooling
Environment	working temp: -20°C ~ 65°C (>40°C, reduced power); working humidity: 20-90%RH storage temp: -40°C ~ 85°C; storage humidity: 10-95% RH
