Output Voltage 40~60Vdc
Output Current DC 0~100A/0~200A
Output Voltage 40~60Vdc
Output Current DC 0~100A/0~200A
Overview
The BD-20P/C Portable Emergency DC Power Supply features a compact and lightweight design with a separate main unit and battery pack, making it easy to carry and transport. The quick plug-and-play design allows for convenient and flexible connections between the main unit and battery packs, enabling rapid battery capacity expansion as needed.
The BD-20P/C emergency DC power supply is ideal for applications where backup power is crucial, particularly in -48V system maintenance. This portable DC power solution provides reliable emergency power in critical situations, ensuring continuity for essential systems.
Functional Characteristics

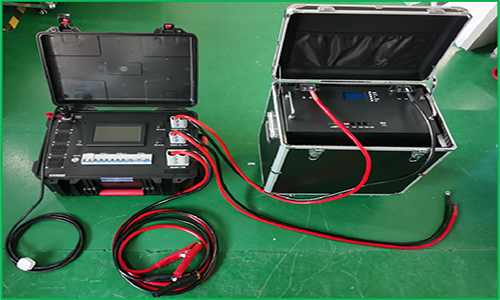

Combination of Separate Units: The main unit and battery pack are separate components that can be easily combined to form a functional portable power supply system. This design enhances portability and ease of transport.
Flexible Application: The quick plug connection allows for a flexible and convenient setup, supporting battery capacity expansion as needed for various power demands.
Stable Output: The system supports setting a constant voltage output, enhancing the reliability and performance of connected devices, and optimizing the service life of lithium batteries.
Uninterrupted Operation: The power supply can be directly connected to an external DC system, automatically matching the output voltage to prevent current backflow, ensuring continuous, stable operation without interruptions.
Multiple Working Modes: The unit supports discharge, charge, and simultaneous discharge and charge modes, offering versatile testing options for different applications.
Comprehensive Protection: Built-in safety features prompt audible alarms for situations like input over-voltage, reverse polarity, over-discharge, and over-charge, ensuring safe operation at all times.

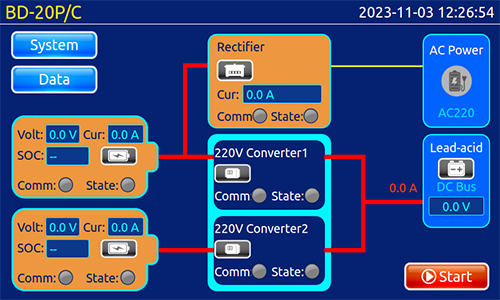

Large Screen Display: A 7-inch LCD touchscreen displays all real-time test data, which is automatically saved during tests for easy monitoring and review.
Technical Parameter
Model | BD-20P/C |
Output Voltage | 40~60Vdc |
Output Current | DC 0~100A/0~200A |
Output Regulation | Manual: set constant output voltage value and current limit value; Automatic: automatically monitor and match external voltage output; the current limit is the max current value |
Operating Panel | 7-inch LCD touchscreen |
Protection | DC input overvoltage, battery reversed polarity connection, charging overcurrent, system overheat, battery pack overcharge/over-discharge |
Power Supply | AC: single-phase 100-264Vac power input; DC: external battery pack DC power input |
