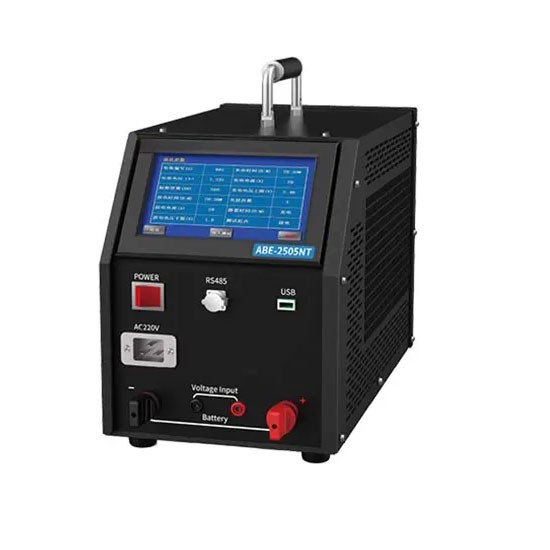

ABE-2550NT 25V 50A Lithium Battery Discharge-Charge Unit - Low Voltage Module Cell Tester

Working Voltage
AC 176-264V,frequency range: 40-60Hz
Discharge Current Range & Accuracy
0.5A-50A;±0.5%FS±0.2A
Discharge Voltage Range & Accuracy
2.5-25V;±0.25%FS±5mV ;0.01V adjustable
Charge Current Range & Accuracy
0.5A-50A;±1%FS±0.2A

EMAIL

Overview

The ABE-2550NT can discharge, charge, and cycle test multiple cells within a battery module, with real-time cell voltage display to prevent overcharging or over-discharging. It is ideal for maintenance and testing of various types of lithium batteries, ensuring optimal performance and safety.

Application

Battery Manufacturers: storage solutions, after-sales support

EV OEMs: battery maintenance and performance testing
Service Providers: discharge-charge testing and rapid battery module matching for after-sales maintenance

Functional Characteristics


Multiple Testing Modes: Supports discharging, charging, and cycle discharging and charging of multiple cells in a battery module, ensuring comprehensive battery maintenance and performance testing.

Data Recording and Reporting: Displays key data such as module voltage, cell voltage, and current curves, with options to generate reports for after-sales analysis and decision-making.

Comprehensive Protections: Includes multiple safety thresholds to prevent overcharging and over-discharging, ensuring the protection of both the battery and testing unit during operation.

Intelligent Operation: Features full touch operation with intelligent prompts and automated judgment, making it ideal for on-site testing with simplified user interaction.

Customizable Parameters: Allows presetting of discharge-charge parameters to meet specific testing needs, offering flexibility for various applications.

Portable and Compact Design: Lightweight and easy to transport, making it convenient for mobile testing and field operations.

7-Inch LCD Touchscreen: The large display shows real-time data and graphs with touch support, simplifying operation and enhancing user experience.

Technical Parameter

Model

ABE-2550NT

Working Voltage

AC 176-264V,frequency range: 40-60Hz

Discharge Current Range & Accuracy

0.5A-50A;±0.5%FS±0.2A

Discharge Voltage Range & Accuracy

2.5-25V;±0.25%FS±5mV ;0.01V adjustable

Charge Current Range & Accuracy

0.5A-50A;±1%FS±0.2A

Charge Voltage Rang & Accuracy

2.5-25V;±0.25% FS±5mV

Charge Mode

4-stage charging (constant current1, constant current2, constant voltage and limited current, floating charge) customized according to actual needs

Working Mode

Multiple working modes optional (charge, discharge and cyclic charge and discharge)
