Voltage Range
2~96V
Discharge Current
0~20A@2~10Vdc/5kW max
0~50A@10~96Vdc/5kW max
Charging Current
0~50A@2~96Vdc/5kW max
Discharge Mode
Constant Current, Constant Power
Charge Control
Constant Current + Constant Voltage
Overview

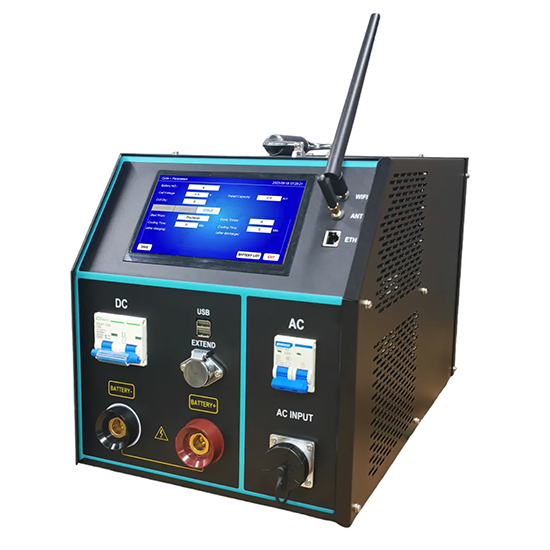

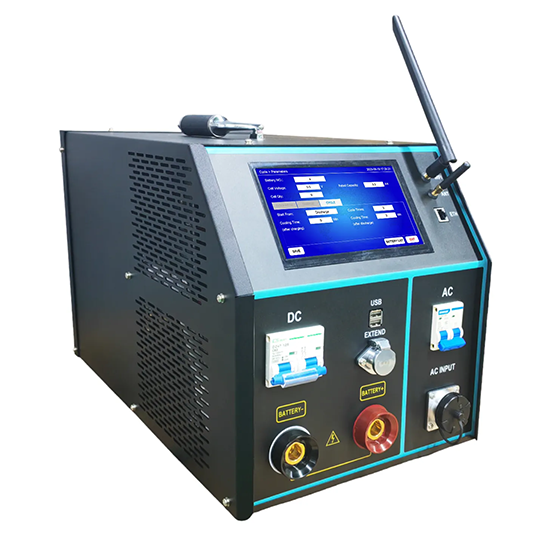

FGCD Series is the latest intelligent battery discharge and charge unit from FUGUANG, designed to handle discharge, charge, and cycle tests for lithium and lead-acid batteries. Featuring advanced built-in testing and maintenance modes, this unit ensures high efficiency in battery management. Its smart operating system supports wireless data transmission, enabling IoT integration for seamless battery monitoring and management. This system enhances maintenance workflows and prolongs the service life of battery packs.
Application
The FGCD Series is highly versatile, making it ideal for a wide range of industries, including communications, power utilities, battery manufacturing, electric vehicle enterprises, railways, subways, and petrochemical sectors.
Functional Characteristics
The FGCD Series offers a multifunctional solution for efficient battery testing and maintenance. It integrates discharge, charge, and activation test modes into one unit, addressing a variety of battery maintenance needs with ease.
High-Efficiency Charging: With a three-stage charging method (CC-CV-FC), it ensures optimal charging for battery packs, significantly improving charging efficiency.
Multi-Discharge Modes: Supports constant current, constant power, and constant resistance discharge modes, enabling full performance testing of batteries under various working conditions.

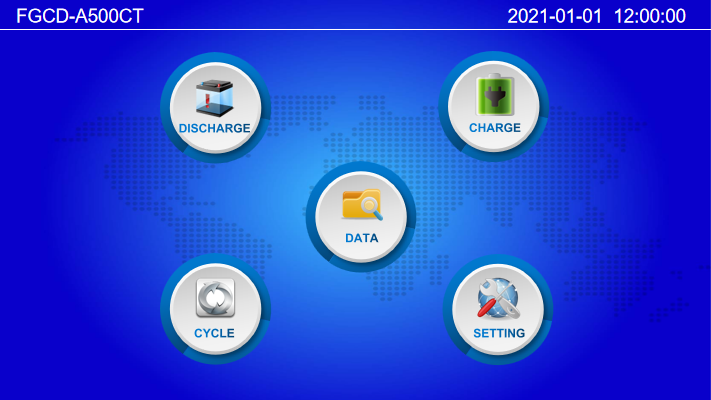

7-inch Touchscreen: The large LCD touchscreen displays real-time data and graphs, including cell voltage, resistance, current curves, and data in Excel format, simplifying user input and operation.
Battery Pack Activation: Customizable charge and discharge rules and cycle times effectively activate the battery and enhance its capacity, prolonging battery life.
Cell Voltage Acquisition: Collects real-time voltage data through CAN or physical sampling, accurately measuring capacity during tests while preventing over-discharge or overcharging risks.
Large Memory Capacity: With 512MB host memory to store data from up to 800 cells and 4GB storage space for up to 3000 test records, providing ample space for data storage.
Multiple Protections: Equipped with multiple protection mechanisms, it automatically terminates tests in case of abnormal conditions, providing beep warnings and visual prompts for user intervention.
Highly Intelligent: Features an advanced operating system with large-screen control and wireless communication options, enabling seamless battery IoT management and ensuring more efficient, accurate maintenance.
Intelligent Platform: Optional mobile app and B/S architecture network platform for remote operation and monitoring via phone, tablet, or computer. Historical data can be managed and analyzed to improve overall work efficiency.
Data Ports: Multiple communication ports such as RS485, RS232, RJ45, and CAN for seamless integration with various lithium battery pack BMS systems.
This enhanced functionality streamlines battery testing and maintenance, providing reliable, efficient, and accurate results for industries like energy storage, electric vehicles, communications, and more.
Technical Parameter
Model | FGCD-A500CT |
Voltage Range | 2~96V |
Discharge Current | 0~20A@2~10Vdc/5kW max 0~50A@10~96Vdc/5kW max |
Charging Current | 0~50A@2~96Vdc/5kW max |
Discharge Mode | Constant Current, Constant Power |
Charge Control | Constant Current + Constant Voltage |
Protection | input overvoltage / overcurrent / battery polarity reverse connection / overheat |
Accuracy | test current ≤±1%FS+0.2A; string voltage ≤±0.5%FS±0.3V; cell voltage: 0-15V@±0.2%FS±5mV |
Communication | USB, RS485 |
Voltage | single-phase 110-240Vac, frequency: 40~60Hz |
Dimension | 512x295x339mm/25kg |
Cooling Mode | forced-air cooling |
Temperature | working: -5~50°C; storage: -20~70°C |
Humidity | RH: 0~90%(40±2°C) |
Rated Altitude | 4000m |
