Group Voltage Range 200-1000V
Working Mode Discharge, Charge, and Cycle
Discharge Mode Constant Current + Constant Power
Communication CAN, RS485
Power Supply AC380V
Overview

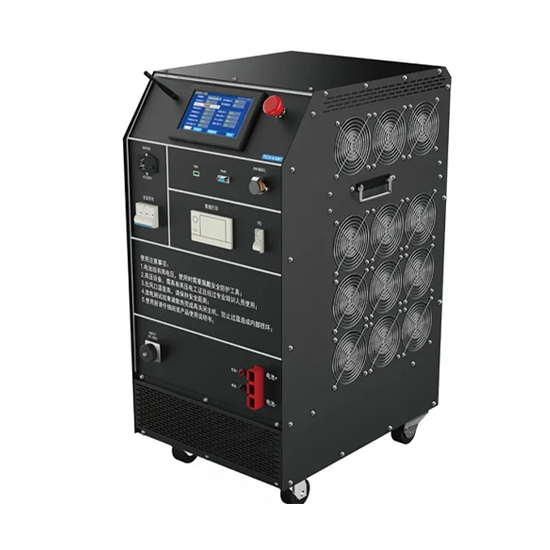

The FGCD series tester utilizes cutting-edge charging and discharging technology, offering multiple built-in test and maintenance modes. It is designed for discharging, charging, and cycle tests of various lithium battery packs, ensuring accurate and efficient performance for diverse battery testing needs.
Application
It is primarily used for high-voltage motive battery discharging, charging, and cycle tests.
It supports regular recharging of energy storage backup battery packs and addresses safety issues related to battery transportation.
It also performs performance tests on aftermarket faulty battery packs, ensuring efficient diagnosis and maintenance.
Functional Characteristics
Multifunctional Testing: The wide voltage range design supports discharge, charge, and activation tests for battery packs across various voltage levels.
Intelligent Testing Technology: Utilizes aerospace-grade load materials and advanced control systems to ensure accurate discharge results.
Versatile Discharge Modes: Supports both constant current and constant power discharge modes, adaptable to diverse testing conditions.
Efficient Charging: High-efficiency charging mode ensures the battery pack is fully charged, improving overall charging speed and efficiency.
Battery Pack Activation: Customizable charge and discharge rules for activation, optimizing battery capacity and performance.
Advanced Communication: Supports CAN and RS485 for seamless data exchange and device integration.
Comprehensive Data Acquisition: Real-time collection of key data such as voltage, temperature, and more. Data is displayed in various formats, including bar charts, tables, and curves.
Safety Protection Features: Equipped with multiple protections, including overvoltage, overcurrent, short-circuit, temperature, and fan fault alarms, ensuring safe operation during tests.
Technical Parameter
BattFix offers a wide range of models within each product series, such as the FGCD series with models like FGCD-60030CT, FGCD-60050CT, FGCD-80030CT, and FGCD-K30NT. Each model is designed to meet specific testing requirements, ensuring you get the precision and flexibility you need for battery testing. Precision Testing Made Easy! Choose BattFix for a simpler, more efficient testing experience.
Model | FGCD-60030CT | FGCD-60050CT | FGCD-80030CT | FGCD-K30NT |
GroupVoltage Range | DC 200-600V | DC 50-750V | DC 200-800V | DC 200-1000V |
Voltage Accuracy | 0.5%FS; group resolution: 0.1V; cell resolution: 0.001V | |||
Discharge Current | 0-30A, 18kW | 0-50A, 20kW | 0-30A, 18kW | 0-80A, 30kW |
Charge Current | 0-20A, 12kW | 0-50A, 15kW | 0-9A, 3.5kW | 0-80A, 30kW |
Current Accuracy | 1%FS | |||
Power Supply | 380Vac | 380Vac | 220Vac | 380Vac |
Working Mode | Discharge(constant current+constant power); Charge(constant current+constant voltage); Cycle test | |||
Cell Acquisition | BMS communication(RS485, CAN) | |||
Protection | over voltage, under voltage, over current, polarity reversal, over temp, overcharge, overdischarge | |||
Dimension(mm) | 680*554*334 | 570*440*890 | 670*290*560 | 880*430*565 |
Weight(kg) | 40 | 88 | 35 | 88 |
