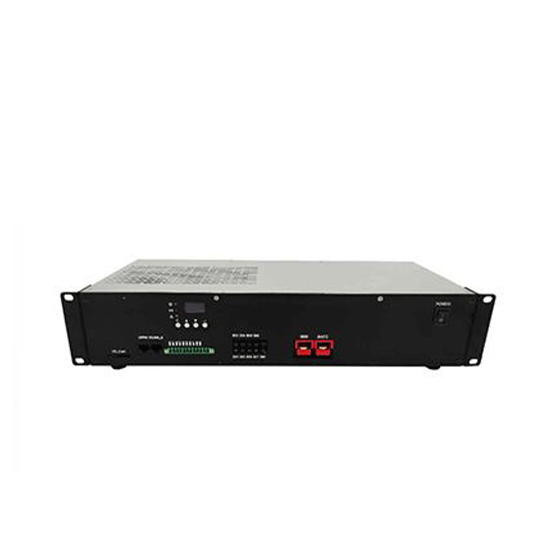

LD-9 DC Battery Smart Maintenance Equipment for 110V/220V Distribution Rooms

LD-9 Series Smart Battery Management System for Distribution Room Backup Battery Groups

The LD-9 Series is designed to provide fully automated, unattended smart monitoring and management for backup battery systems in distribution rooms. It offers real-time insights into the capacity and runtime of all online battery groups, enhancing the operational quality of DC power screens, improving overall maintenance efficiency, and extending battery life. This system is widely used in electric grid distribution rooms across various regions.

Key Features and Applications:

• Distributed Capacity Verification: The system uses individual cell capacity testing and boosted power supply technology, enabling online capacity testing operations for each battery cell in the group, ensuring accurate measurements and health monitoring.

• Smart Balancing: Features fully automatic, online balancing technology that ensures all battery voltages meet the required parameters, optimizing the performance and lifespan of the battery pack.

• Automated Monitoring and Inspection: The system performs real-time monitoring of battery groups, conducts periodic automated inspections, and provides early warning alarms to prevent battery degradation and ensure optimal performance.

Functionality Overview:

• Real-Time Monitoring: Continuously monitors critical parameters such as group voltage, power voltage, current, individual cell voltage, runtime, and ambient temperature, providing accurate data to ensure battery health and reliable power supply.

• Remote Testing: Users can perform remote internal resistance tests, discharge tests, and configure battery group information directly from the platform, streamlining diagnostics and maintenance.

• Ubiquitous IoT Connectivity: Leveraging the existing LTE-4G wireless power network, the system architecture includes the physical sensing layer, network interaction layer, and smart maintenance platform software, creating an efficient, remote battery management system.

• Geographical Mapping and Alerts: Provides a color-coded map for battery group alarm levels, allowing users to directly click on alarm icons to access specific battery group details and take immediate corrective actions.

• Comprehensive Management Platform: Offers a full suite of features for battery group management, including site information management, real-time data display, real-time alert notifications, historical data recording, charge/discharge data storage, battery performance analysis, trend analysis, statistical analysis, and the generation of professional reports.

The LD-9 Series offers three different models to meet various battery management and monitoring needs:

1. LD-9

2. LD-9-100

3. LD-9-100MS

These models are designed to provide smart monitoring and intelligent management for DC battery systems in distribution rooms, each tailored to support different voltage and current ranges. Whether you require a standard model or one with higher capabilities, the LD-9 Series has the right solution to ensure efficient battery performance and optimal maintenance.
