Control accuracy discharge current <±1%;
Group terminal voltage <±0.5%;
Single voltage: ±0.3% single voltage collection wireless single module collection;
Can obtain the existing monitoring data, reduce the single wiring display mode large size color LCD touch screen protection function input end overvoltage protection;
Battery voltage polarity reverse protection;
Overcurrent protection;
85℃ overheating protection

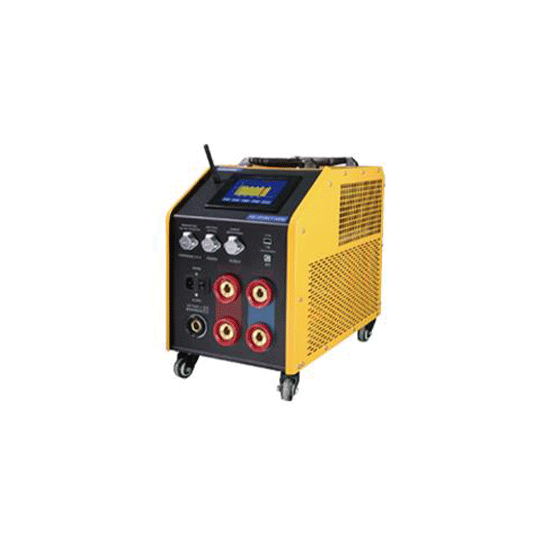

The FBI-CT Series is an advanced battery maintenance system that integrates an online charging and discharging system, an individual battery charging system, and a battery cell monitoring system using wireless Bluetooth technology. This smart system is designed to address maintenance challenges for -48V telecom batteries, high-voltage DC systems, and UPS battery banks, enhancing efficiency, reducing labor intensity, and ensuring network stability.
One of the key innovations of the FBI-CT Series is its ability to recover and reuse the energy released during battery discharging. This eco-friendly design aligns with national energy-saving and environmental protection standards, significantly reducing energy waste and heat generation.
Key Features and Functions
Full online constant current discharge
The FBI system connects to one of the parallel battery groups without adjusting the switching power supply voltage, enabling the tested battery group to supply constant current to the actual load while undergoing controlled discharge.
Intelligent protection and automatic backup switching
If a power outage occurs during charging or discharging, the system automatically connects all battery packs to ensure uninterrupted power supply, preventing system failures and safeguarding critical infrastructure.
Innovative energy recovery technology
Unlike traditional systems that generate excessive heat during discharge, the FBI-CT Series effectively recycles all discharged energy, reducing waste and optimizing energy efficiency.
Multi-layer protection and smart monitoring
Equipped with both hardware and software protection, the system operates 24/7 to ensure battery performance and safety.
User-friendly intelligent operation
Designed for remote and unmanned operation, the system automatically handles testing, data recording, recovery, and emergency power failure responses.
Large touchscreen display
All key parameters and real-time battery conditions are displayed on a single screen, with graphical tracking of individual battery voltage fluctuations.
Wireless individual battery voltage monitoring
The system intelligently identifies voltage thresholds, preventing unexpected shutdowns caused by monitoring module disconnections.
Pre-set discharge parameters
With a built-in battery discharge coefficient table, the system automatically calculates the appropriate discharge current, optimizing performance and maintenance.
FBI Series | 3048CT | 4548CT | 6048CT | 10240CT | 15240CT | 40240CT | 80240NT | 10480CT | 15480CT |
---|---|---|---|---|---|---|---|---|---|
Applicable System | -48V System | High Voltage DC System | High Current DC System | UPS System | |||||
Input Voltage Range | DC 40V ~ 60V | DC 40V ~ 60V | DC 40V ~ 60V | DC 140V ~ 300V | DC 140V ~ 300V | DC 204V ~ 288V | DC 204V ~ 288V | DC 300V ~ 650V | DC 300V ~ 650V |
Charge/Discharge Current | 0 ~ 300A | 0 ~ 450A | 0 ~ 600A | 0 ~ 100A | 0 ~ 150A | 0 ~ 400A | 0 ~ 800A | 0 ~ 100A | 0 ~ 150A |
Control Precision | Discharge current ≤ 1%; Constant voltage charge ≤ 0.5%; Single battery voltage ≤ ±0.3% | ||||||||
Single Cell Data Acquisition | Wireless acquisition module; Supports adjustment and monitoring control to reduce single battery wiring | ||||||||
Display Method | Large-size color LCD touchscreen | ||||||||
Protection Features | Input overvoltage protection; Battery reverse polarity protection; Overcurrent protection; 85°C overheat protection | ||||||||
Safety Alarm | LED alerts, Buzzer alarm | ||||||||
Communication Method | RS485 port / USB / WIFI | ||||||||
Power Supply Mode | AC 220V (-20% ~ +30%) 45~65Hz; 48V system supports DC18-60V; 600V system supports direct output customization | ||||||||
Dimensions (mm) | 600*280*400 | 600*280*400 | 600*280*400 | 550*440*660 | 550*440*660 | 750*550*1230 | 750*550*1230 | 550*440*660 | 550*440*660 |
Weight (kg) | 20 | 24 | 29.5 | 25 | 25 | 144 | 200 | 25 | 25 |
