Model FIDC-8500T applies to single voltage 2V/6V/12V test groups 1 ~ 4 groups, can expand the single test accuracy 0.3% sampling time 5ms/ point current detection range 0~3000A;
Accuracy: 1% Size (mm)400*300*160 Weight (kg)1
Regular capacity discharge testing of battery packs is a crucial maintenance task that requires professional monitoring equipment to accurately assess the actual performance of the battery system.

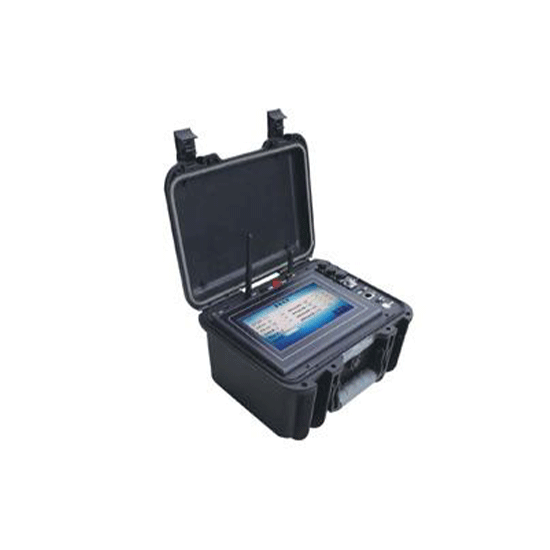

The FIDC-8500T is the latest online battery discharge capacity monitoring device developed by Fuguang Electronics. This smart battery management system automatically records the entire charge and discharge process, providing precise estimations of individual battery capacity and overall system performance. It also analyzes critical parameters such as cutoff voltage to help users evaluate battery health from multiple perspectives. With IoT-enabled technology, the system enhances efficiency, simplifies capacity testing, and allows maintenance personnel to systematically manage battery groups with greater accuracy.
Wireless Data Transmission – Continuously monitors individual battery voltage and current, records real-time discharge variations, and enables wireless data transmission for seamless performance tracking.
Multiple Monitoring Modes – Supports online discharge monitoring, charging monitoring, and long-term online monitoring to adapt to different testing scenarios.
Fast Capacity Estimation – Built-in battery capacity analysis algorithms estimate remaining battery capacity within just five minutes of online discharge data collection.
Comprehensive Parameter Analysis – Captures and records key indicators such as cutoff voltage and hump voltage, providing multi-dimensional performance evaluations.
Accurate Terminal Voltage Measurement – Unlike traditional monitoring systems that only sum individual cell voltages, the FIDC-8500T accurately detects group terminal voltage, ensuring a precise assessment of backup power capabilities.
Multi-Cell Monitoring – Each wireless monitoring module can track up to four 2V/6V/12V battery cells, allowing scalability without cell limitations.
Advanced Communication Interfaces – Supports USB, Ethernet, and SIM card connectivity, ensuring flexible data transfer and remote monitoring capabilities.
High Expandability – Offers versatile expansion options, including lithium battery monitoring, extensive data storage, and detailed performance analysis.
Large Touchscreen Display – Equipped with a high-resolution color touchscreen, providing intuitive navigation and easy access to key data.
Built-in Alarm System – Detects underperforming battery cells or abnormal conditions and issues real-time sound alerts while automatically logging alarm events for future reference.
The FIDC-8500T Wireless Battery Capacity Monitoring System is an essential tool for power system maintenance, ensuring reliable backup power performance, reducing downtime, and enhancing overall battery efficiency and lifespan.
