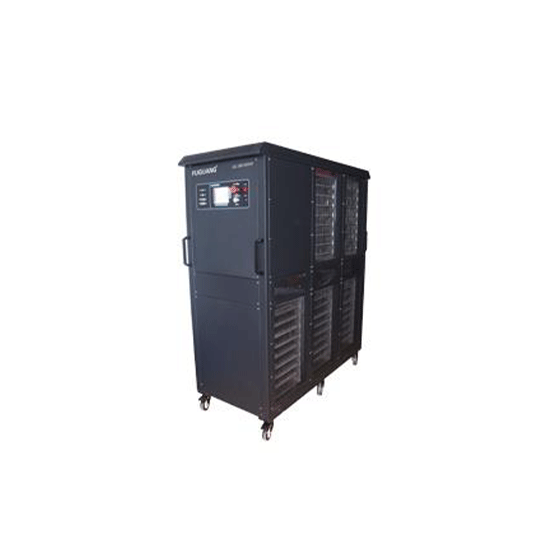

IAC-380 Series Intelligent AC Load Bank

Current display resolution: 0.1A, accuracy: 0.5% Access load voltage 3 phase 380V, single-phase 220V discharge time cooling mode Communication mode control mode 0 ~ 99 hours 59 minutes, continuous adjustable fan strong cooling RS232, USB discharge power can be continuous

EMAIL

The IAC-380 Series Intelligent AC Load Bank is a state-of-the-art testing instrument designed to conduct precise power evaluations for UPS systems, inverters, and diesel generators. With intelligent control technology, it synchronizes load discharge and parameter detection, automatically generating comprehensive test reports through dedicated software. This load bank is an essential tool for power acceptance testing, routine maintenance, and performance evaluation in industries such as telecommunications, power utilities, aviation, and manufacturing.

Key Features:

  • Steady-State Testing: Automatically measures three-phase voltage, current, active power, reactive power, apparent power, power factor, frequency, runtime, and accumulated energy consumption.

  • Transient Load Testing: Captures voltage, current, and frequency variations during sudden load additions and removals, automatically calculating power and power factor changes.

  • Setpoint Testing: Records maximum and minimum values of voltage, current, and frequency while computing voltage and frequency regulation rates.

  • Voltage & Frequency Fluctuation Analysis: Detects voltage, current, and frequency fluctuations, computing stability metrics such as steady-state voltage deviation and frequency modulation.

  • Harmonic Analysis: Performs in-depth harmonic distortion analysis of voltage and current from the 2nd to the 50th harmonic order.

  • Single-Phase & Three-Phase Power Testing: Supports both single-phase and three-phase power measurements for versatile applications.

  • Parallel Testing Capability: Allows multiple load banks to operate in parallel, enabling high-power load testing.

  • Phase Sequence Detection: Verifies the phase sequence of generators and UPS systems to prevent operational issues.

  • User-Friendly Touchscreen Interface: Features a 5.7-inch full-color touchscreen with an intuitive, Chinese-language user interface for simplified operation.

  • Large Internal Memory: Stores up to 250 sets of test data, eliminating the need for an external computer during testing.

  • Comprehensive Data Management: Supports real-time data monitoring via USB, while test results can be exported through serial ports or USB drives for graphical analysis, reporting, and printing.

  • Overheat Protection: Equipped with automatic thermal shutdown to prevent overheating, ensuring safe operation.

The IAC-380 Series is a high-performance AC load bank designed for power professionals who require precision, reliability, and advanced analytical capabilities in load testing applications.
