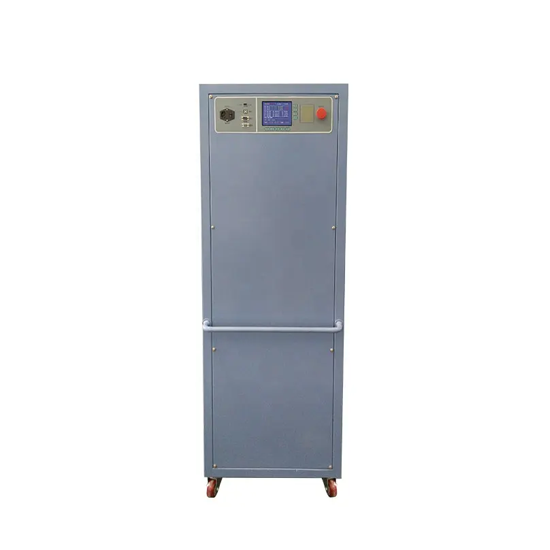

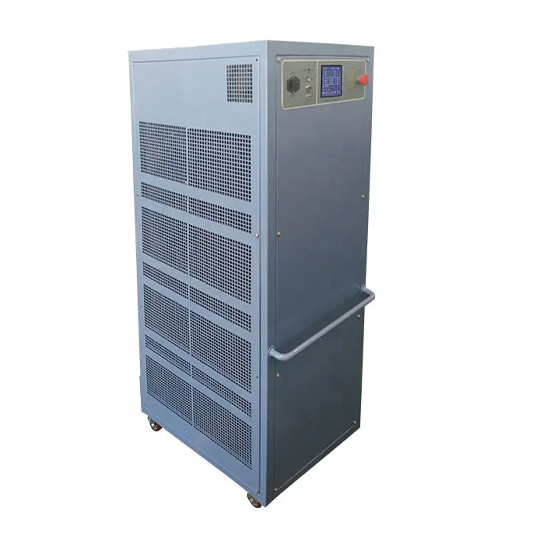

IAC-380 200KW Intelligent AC Load Simulator for Comprehensive Power Testing

Overview

The IAC-380 series is an advanced and reliable instrument for testing AC power supply devices such as generators, UPS systems, and other electrical equipment. It is ideal for full power loading capability tests during acceptance inspections, renovations, overhauls, and routine maintenance.

Key Features:

• Revolutionary Functions & User-Friendly Interface: The IAC-380 series offers innovative features and an intuitive interface, enhancing the user experience.

• Steady-State Testing: Automatically detects and measures:

• 3-phase voltage, current, active power, reactive power, apparent power

• Power factor, frequency, runtime, and total energy

• Transient-State Testing: Simulates load dips and drops according to preset power values, measuring:

• Maximum and minimum phase voltage, current, and frequency

• Power and power factor during transient states

• Setting Test: Automatically increases and decreases load in steps, detecting:

• Maximum and minimum values for voltage, current, frequency, 3-phase power, and power factor

• Fluctuation Test: Monitors and records fluctuations in voltage, current, and frequency while detecting power values in real time.

• Harmonics Analysis: Measures current and voltage Total Harmonic Distortion (THD) for 2-20th harmonics in each phase.

• Support for 3-Phase & 1-Phase Power Testing: The IAC-380 series supports both 3-phase and 1-phase testing, with the highest model offering up to 100KW of power.

• Parallel Operation: For high power tests, the IAC-380 series can operate in parallel seamlessly.

• Phase Sequence Test: Automatically detects the phase sequence of generators and UPS systems.

• Advanced Display & Interface: Features a 5.7-inch color touch LCD with an easy-to-use English interface for convenient operation and clear viewing.

• Data Storage: The internal memory can store up to 250 test data sets, eliminating the need for external recording devices.

• Real-Time Data Viewing: Allows users to monitor live test data via laptop software or download data to a PC using RS-485 or USB.

• Safety Features:

• Overheating Protection: The IAC-380 series automatically cuts off the load, terminates discharge, and triggers an alarm in case of overheating.

• Emergency Stop: Includes a one-touch emergency stop button for immediate test termination.

• Short-Circuit Protection: Ensures safe and stable testing by protecting against short circuits.

This comprehensive range of functions and safety features makes the IAC-380 series an indispensable tool for testing and maintaining AC power supply equipment.
