Max Voltage Input 230 volts, single phase 50/60 Hz
Full Load Rating (single phase) 6.6KW (29A) for 230V single phase
Full Load Rating (3-phase) 6.6KW (9.6A) for 400V 3 phase
Load Channels 3 separate 2.2KW channels at 230V
Adjustment 6 x 1.1KW steps, selected via panel mounted illuminated switches
Overview
230V/400VAC Rack-Mounted Load Bank for Data Centre Testing - 6.6KW Capacity, 19” 4U Structure, Adjustable in 1KW Steps
19” Rack-Mounted 4U Structure: Compact and easy to integrate into standard data centre racks.
Max 6.6KW Load Capacity: Supports up to 6.6KW total, with separate 2.2KW max for each phase.
1KW Adjustable Load Steps: Precise load adjustment in 1KW increments for flexible testing.
Ideal for Data Centre Power Testing: Designed specifically for testing power systems in data centre environments.
SPECIFICATIONS
| Model | FAC-6.6KW |
|---|---|
| Max Voltage Input | 230 volts, single phase 50/60 Hz |
| Full Load Rating | 6.6KW (29A) for 230V single phase 6.6KW (9.6A) for 400V 3 phase |
| Load Channels | 3 separate 2.2KW channels at 230V Each load adjustable in 2 steps of 1.1KW |
| Adjustment | 6 x 1.1KW steps, selected via panel mounted illuminated switches |

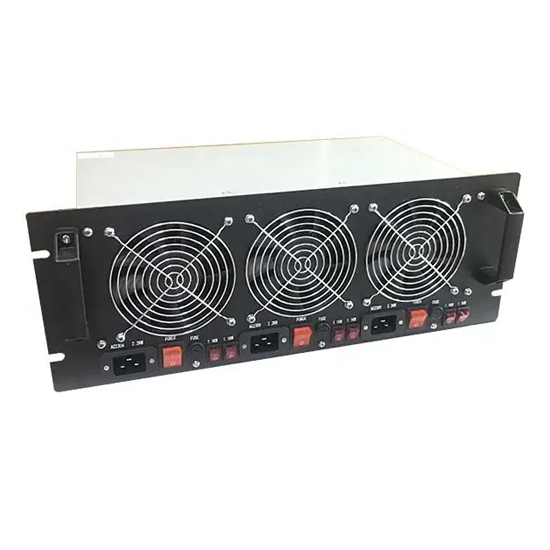

| Connection | Three C20 panel mounted sockets for each independent load channel |

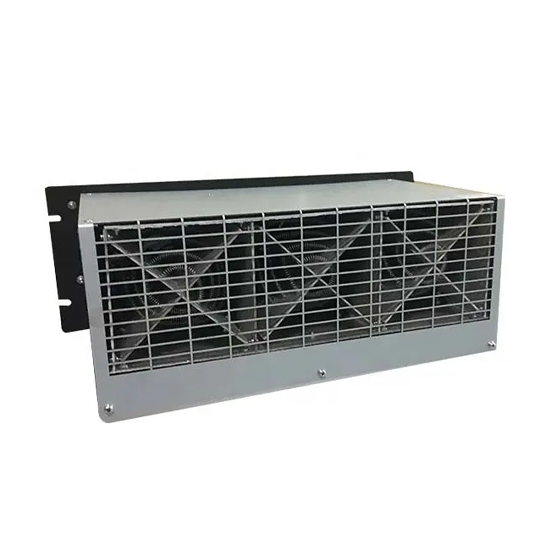

| Cooling | 3 low noise, horizontal force air cooling fans, powered from the test source. Cool air intake at front, hot air exhaust at rear. |
| Airflow | Each fan 286 m3/hr, Total airflow 858 m3/hr |
| Element Type | High temperature Ni-chrome tape wound mounted on mica composite card. |
| Dimensions & Weight | 482.6×286×177 mm (4U 19" rack) 6.1kg |
| Operating Temperature | -5~50°C |
| Storage Temperature | -40~70°C |
| Humidity | RH 0~90% (40±2°C) |
| Altitude | <4000m |
| Movement | Front handles for slide in assembly to 19" racks |
